Riveted Grating - High Load Capacity for Bridge Decking
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- FOB Price
- USD $500.00 / Piece
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Riveted grating is a type of heavy duty grating, which has higher load carrying capacity than the welded steel grating or swage-locked grating in the same span and depth of grating.
The main parts of riveted grating are bearing bars, crimp bars and rivets. Different from press-locked grating
Riveted grating is mainly manufactured from carbon steel, aluminum steel or stainless steel. The carbon steel can be galvanized or painted for further corrosion resistance, and the aluminum rivet grating is popular with applications, which need lightweight and corrosion resistant gratings. The stainless steel rivet grating has excellent acid and alkali resistance, it is widely used in the extremely harsh environments.
Smooth surface riveted grating.
Serrated surface riveted grating.
Specifications
- Material: carbon steel, stainless steel or aluminum steel.
- Surface treatment: galvanized, painted or mill finished.
- Bearing bar size: 1" × 1/8", 1" × 3/16", 1-1/4" × 1/8", 1-1/4" × 3/16", 1-1/2" × 1/8", 1-1/2" × 3/16", 1-3/4" × 3/16", 2" × 3/16", 2-1/4" × 3/16" and 2-1/2" × 3/16". Other sizes can be customized.
- Crimp bar size: 3/4" × 1/8" or 1" × 1/8". Special sizes are available.
- Bearing bar spacing: 1-1/8" and 3/4".
- Cross bar spacing: 7" or 3".
- Surface type: smooth surface or serrated surface.
| Item | Bearing bar | Crimp bar | Bearing bar spacing | Cross bar spacing |
|---|---|---|---|---|
| RG18-01 | 1" × 1/8" | 3/4" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-02 | 1" × 3/16" | 3/4" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-03 | 1-1/4" × 1/8" | 3/4" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-04 | 1-1/4" × 3/16" | 3/4" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-05 | 1-1/2" × 1/8" | 1" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-06 | 1-1/2" × 3/16" | 1" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-07 | 1-3/4" × 3/16" | 1" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-08 | 2" × 3/16" | 1" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-09 | 2-1/4" × 3/16" | 1" × 1/8" | 1-1/8" | 7"/ 3" |
| RG18-10 | 2-1/2" × 3/16" | 1" × 1/8" | 1-1/8" | 7"/ 3" |
| Item | Bearing bar | Crimp bar | Bearing bar spacing | Cross bar spacing |
|---|---|---|---|---|
| RG12-01 | 1" × 1/8" | 3/4" × 1/8" | 3/4" | 7"/ 3" |
| RG12-02 | 1" × 3/16" | 3/4" × 1/8" | 3/4" | 7"/ 3" |
| RG12-03 | 1-1/4" × 1/8" | 3/4" × 1/8" | 3/4" | 7"/ 3" |
| RG12-04 | 1-1/4" × 3/16" | 3/4" × 1/8" | 3/4" | 7"/ 3" |
| RG12-05 | 1-1/2" × 1/8" | 1" × 1/8" | 3/4" | 7"/ 3" |
| RG12-06 | 1-1/2" × 3/16" | 1" × 1/8" | 3/4" | 7"/ 3" |
| RG12-07 | 1-3/4" × 3/16" | 1" × 1/8" | 3/4" | 7"/ 3" |
| RG12-08 | 2" × 3/16" | 1" × 1/8" | 3/4" | 7"/ 3" |
| RG12-09 | 2-1/4" × 3/16" | 1" × 1/8" | 3/4" | 7"/ 3" |
| RG12-10 | 2-1/2" × 3/16" | 1" × 1/8" | 3/4" | 7"/ 3" |
Aluminum riveted grating.
Painted carbon steel riveted grating.
Features
- Alkali and acid resistance. Stainless steel riveted grating has outstanding chemical stability.
- Corrosion resistance. Aluminum riveted grating can be used in the corrosion environments.
- Lightweight. Aluminum riveted grating is lighter than other material gratings.
- High load capacity. The riveted grating can be used as heavy duty bridge grating in the bridge constructions.
Applications
- Riveted grating is widely used as trench cover, drainage cover for convenient dewatering.
- Riveted grating can be used in the bridge constructions as heavy duty bridge grating.
- Riveted grating with serrated surface can be used as the walkways for slip resistance.
- Riveted grating is suitable for wheeled equipment access, such as the wheelchairs, roller skates and baby carriage.
Riveted grating can be used as the trench cover for dewatering.

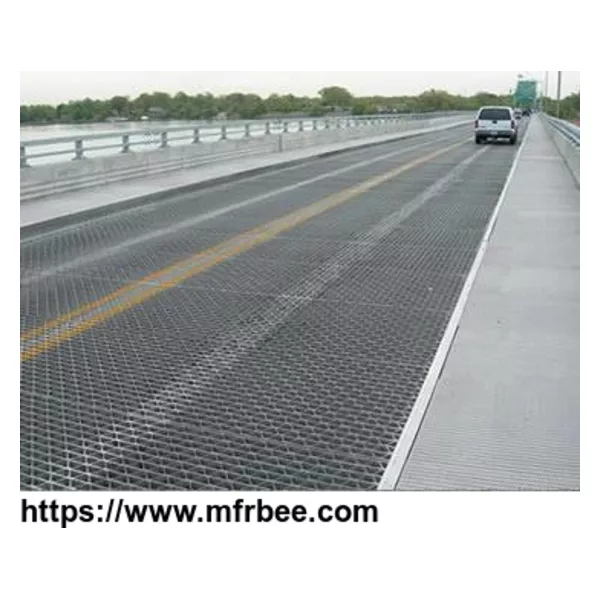

Riveted grating with heavy load capacity is widely used in the bridge.
