O2s-fr-t2-18bm-c-420m Zirconia Oxygen Sensor System

Zirconia O2 Sensors
Oxygen Measurement System

Description
The Zirconia Oxygen Sensor System offers a complete solution, removing the need for customers to develop their own electronics. Frequently used in combustion control systems, burning coal, oil, gas and biomass and in oxygen generation systems.

FEATURES

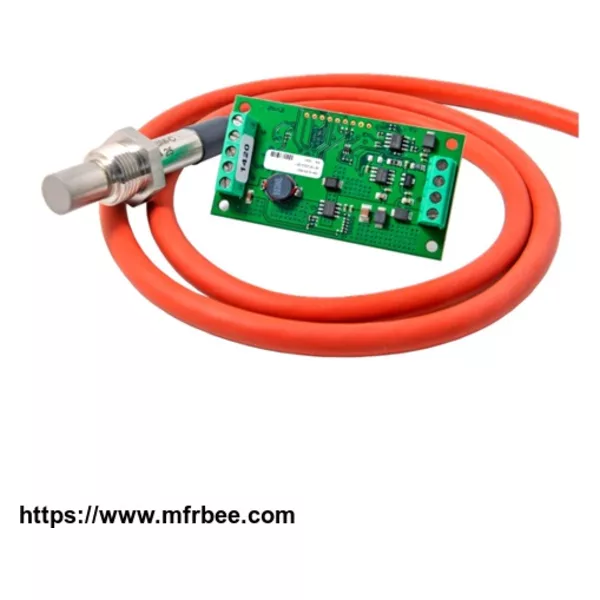

• Fast response zirconium dioxide (ZrO2) sensor in conjunction with the OXY-LC oxygen sensor interface board
• Long life, non-depleting technology
• Integral heating element
• High accuracy
• Linear output signal

BENEFITS
• No reference gas required
• No need for temperature stabilisation
• Probe mounting positions available; 55mm
• M18x1.5 screw mounting

TECHNICAL SPECIFICATIONS

Supply voltage Analogue output variants:	20-28V DC
Supply current	600mA max. at 24V DC 1.2A max. at 12V DC
Analogue output	4-20mA; load 600Ω max
Pump impedance at 700°C	< 6kΩ
Permissible gas temperature	-100°C to +250°C
Gas flow rate	0-10m/s
Operating pressure limits	260-1260mbar absolute
Mounting thread	M18 x 1.5

OUTPUT VALUES

Oxygen range (analogue output)	0.1-25% O2 or 0.1-100% O2
Accuracy after calibration	0.5% O2
Output resolution	0.01% O2
Response time (10-90% step)	< 4s
Initial warm up time (till stable output)	5 - 10mins
Output inactive start up delay (heater warm up) From OFF to ON mode:	60s

ORDER INFORMATION
Referring to the tables below will allow you to tailor a system to suit your specific requirements.

PCBPart Number	O2MeasureRange	OutputType	HeaterVoltage
OXY-LC-A25-455	0.1 to 25%	Current: 4-20mA	4.55V DC
OXY-LC-A100-455	0.1 to 100%	Current: 4-20mA	4.55V DC
