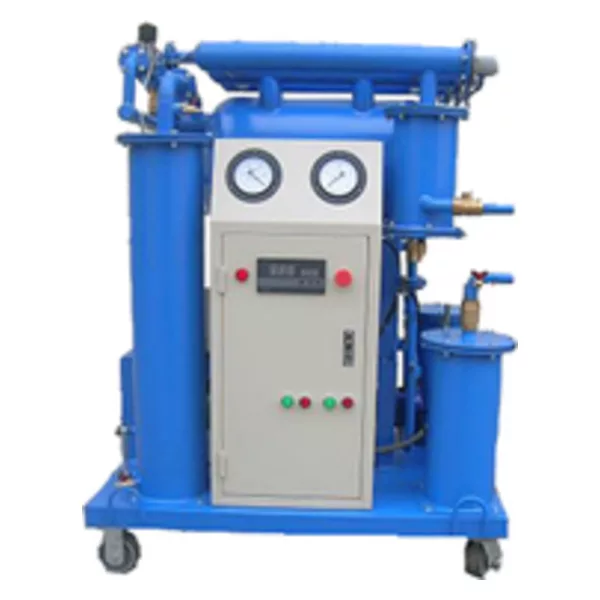

Profitable high vacuum transformer oil purifier plant
Product Quick Detail
- China
- Chongqing
- Packaging
- wooden case
- Delivery
- 15 Days
Specifications
Profitable high vacuum transformer oil purifier plant, with CE and ISO approval, dehydration and degasfication
Application:
Series ZY high vacuum insulating oil purifier is specially designed for purification of aging transformer oil, mutual inductor oil, switch oil, capacitor oil as well as for other electrical insulating liquids. The process maintains the oil's dielectric strength, removes free, soluble water, air-gases and particulate matter.
Features:
1. This machine is small, hi-efficient conveniently. And it can live operated with electrical, vacuum oiling the power equipment and dry moisture of power equipment.
2. Duplex-Stereo film evaporation technology, combined with unique and advanced dewatering, degassing components, can rapidly and effectively separate water, gas from oil.
3. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
4. Double-infrared liquid level sensor, pressure protective system to ensure the machine operation easy and safely.
5. Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
6. Working with BZ insulating oil regeneration device to decolor (remove acid, oxide, free carbon) and lower dielectric loss, making the treated oil more limpidity.
Advantages:
Series ZY is efficient and economical insulating oil purifier. Doplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 tims than traditional oil purifier. Machine adopts interlocked protective system, double-infrared liquid level sensor and pressure protective system to make sure the machine work unattended, operation easy, safe and reliable.
Technical Parameters:
| Parameters | Unit | ZY-6 | ZY-10 | ZY-20 | ZY-30 | ZY-50 | ZY-100 | ZY-150 | ZY-200 | ZY-300 | |
| Flow rate | L/h | 360 | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | |
| Vacuum degree | MPa | -0.06~-0.095 | |||||||||
| Working pressure | MPa | ≤0.3 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | |
| Temperature range | °C | 20 ~ 80 | |||||||||
| Continuous working | H | 150 | |||||||||
| Power supply | Three phase,50HZ ,380V(or as per customer requirement) | ||||||||||
| Working noise | dB(A) | 60 | 61 | 63 | 70 | 70 | 75 | 70 | 70 | 70 | |
| Heating power | kW | 9 | 11 | 13 | 15 | 30 | 48 | 58 | 70 | 85 | |
| Total power | kW | 9.7 | 12.5 | 14.5 | 16.5 | 33.5 | 53 | 65 | 76 | 94 | |
| Oil inlet/outlet | mm | φ20 | 25 | φ25 | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | |
| Weight | Kg | 150 | 230 | 250 | 270 | 300 | 500 | 700 | 900 | 1100 | |
| Size | L | mm | 970 | 1050 | 1100 | 1150 | 1200 | 1600 | 1600 | 1800 | 1900 |
| W | mm | 630 | 750 | 850 | 900 | 950 | 1000 | 1100 | 1200 | 1200 | |
| H | mm | 900 | 1300 | 1400 | 1450 | 1500 | 1800 | 1800 | 1900 | 1900 |
Guarantee Value
| Item | Guarantee indexes |
| Moisture content | ≤5PPM |
| Impurity size | ≤1 micron |
| Gas content | ≤0.1% |
| Breakdown voltage | ≥70 |
