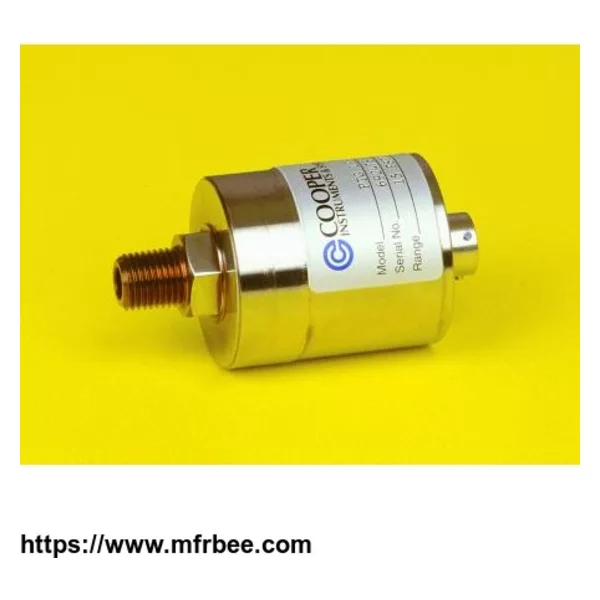

PTG 135 Precision Pressure Transducer
Product Quick Detail
- Brand Name
- Cooper Instruments
- Place Of Origin
- United States
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
PTG 135 - PRECISION PRESSURE TRANSDUCER
The model PTG 135 (gage pressure) is designed for rugged industrial applications requiring high accuracy pressure measurements. These transducers are designed with 4 arm 350 ohm strain gage bridge and have welded stainless steel construction. Using a \"True Gage\" design, the PTG 135 utilizes a second welded diaphragm that hermetically seals the strain gage circuitry which allows the transducer to reference atmospheric pressure.
Features
• Hermetically Sealed
• High Accuracy
• Welded Diaphragm
• Optional Amplified Output
• 0.1% Full Scale Accuracy
Specifications
| Pressure Ranges | 1 psig to 60,000 psig |
| Accuracy | ± .1% F.S. |
| Material | Stainless Steel |
| Temperature Range | 60˚ to 160˚ F |
| Output | 2mV/V ±0.25% |
| Output Resistance | 350 ±5 Ohms |
| Bridge Rresistance | 350 ohm |
| Excitation | 10 V ac-dc (15V max) |
| Safe Overload | 25% to 50% Over Capacity |
| Pressure Ports | 1 to 10,000 psia see chart 15,000 psia to 60,000 psia - 9/16-18UNF per AE F250-C for 1/4 OD High Pressure Tubing |
| Cable | As Required - mating conn. not incl. (PTO6A-10-6S) |
| PTG 135 PRESSURE RANGES | D\" | L\" |
| 1; 2; 5 psig | 2.25 | 1.81 |
| 10; 15 psig | 1.75 | 2.00 |
| 25; 50; 75; 100; 150; 200; 300; 500 psig | 1.50 | 2.01 |
| 750; 1000; 1500, 2000, 3000; 5000 psig | 1.50 | 2.35 |
| 7500; 10,000 psig | 1.50 | 2.39 |
| 15,000; 20,000; 30,000; 50,000; 60,000 psig | 1.50 | 2.21 |
