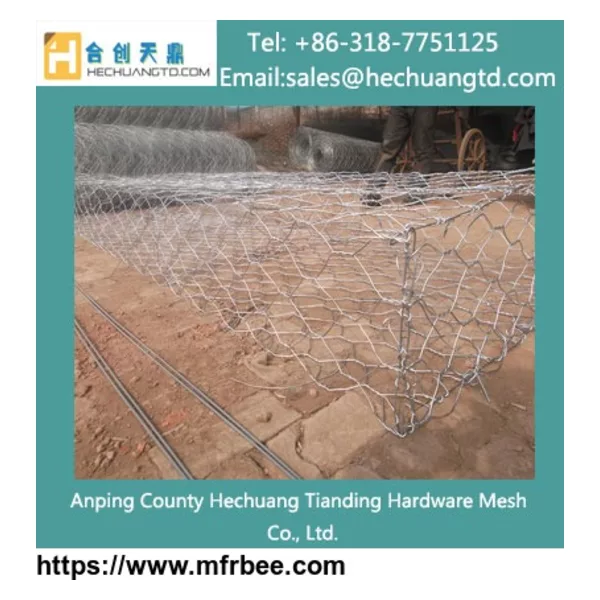

Hot Dipped Galvanized Gabion Box
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description
Reno Mattresses, or revet mattresses, are gabion type structures manufactured from 60 x 80 80*100 double twist mesh with more planar area and relatively small in thickness. The blending of
Reno Mattress structures into the environment is rapid and pleasing. The voids in the rock fill become progressively filled with silt, promoting vegetation growth which is essential to the
preservation and maintenance of the ecological balance of the surrounding environment.
Reno Mattresses are used for river bank and scour protection, channel linings for erosion control, and embankment stability. They are filled with rock at the project site to form flexible,
permeable, monolithic structures to promote rapid growth of natural vegetation. All the physical and mechanical properties of Maccaferri Reno Mattresses meet or exceed the requirements of ASTM
A975 .
The Reno Mattress is filled with stones on site to create a flexible, permeable and monolithic structure to be used for river and canal bank protection works.
Application:
- Control water or flood
- Flood bank, guiding bank
- Preventing rock breaking
- Water and soil protection
- Protection engineering of seaside area.
Rock Mattress/ Reno Mattress
|
Rock Mattress/ Reno Mattress Dimensions(m) |
Mesh Size | |||||
| 80*100 | 60*80 | |||||
| Length | width | Height | Galvanized or coated | Galvanized or coated | ||
| Mesh wire diameter | Zinc Weight | Mesh wire diameter | Zinc Weight | |||
| 3 | 2 | 0.17/0.23/0.30 | 2.7mm | >245g/m | 2.0~2.2mm | .215g/m |
| 4 | 2 | 0.17/0.23/0.30 | Edge Wire diameter | Zinc Weight | Edge Wire diameter | Zinc weight |
| 5 | 2 | 0.17/0.23/0.30 | 3.4m | >265g/m | 2.7mm | >245g/m |
| 6 | 2 | 0.17/0.23/0.30 | Tie wire specifications 2.2mm | Tie wire specifications 2.2mm |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Europe,Africa,Americas,Asia,European Union
- Founded Year:2011
- Address:Anping New & Hi-Tech Industrial Development Zone Hebei China
- Contact:Baoshun Liu
