Pleated Filter Disc

FOB Price
USD $500.00 / Piece
Place Of Origin
china
Minimum Order
1
Packaging
N/A
Delivery
15 Days
Pleated Filter Disc Designed for the Highest Filtration Efficiency

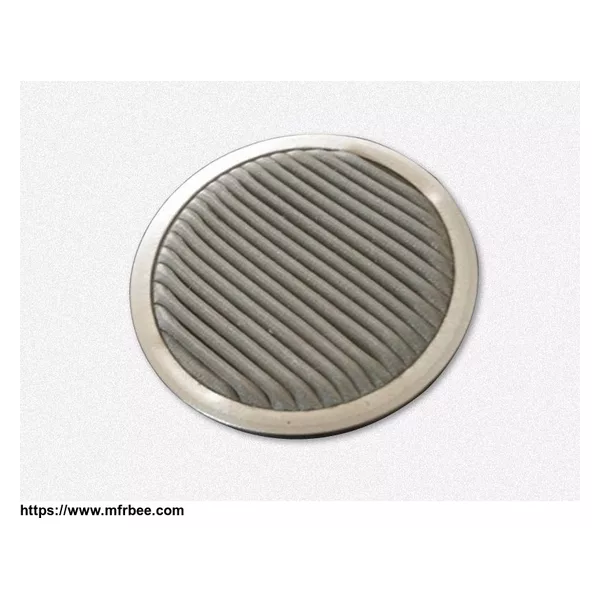

This is one pleated filter disc with a metal edge.
We are the professional to offer more efficient filtration solutions.

Manufactured with multiple layers of precision woven wire cloth and/or non-woven fiber metal felt, pleated filter disc is precisely stamped and processes the highest quality. Rimmed and unrimmed forms are available. The pleated rimmed filter disc provides a tight seal. The media is pleated to provide much more filtration surface area than flat screen pack.

Pleated filter disc is widely used in the industrial, aerospace and commercial applications.

Feature
Corrosion resistant for the maximum efficiency and longevity.
It could filter finer particles.
Extended lifespan.
Reduced initial pressure drop.
High viscosity polymer filtration.
Specification
Materialstainless steel, copper and other alloys.Filter mediastainless steel mesh.This is the diagram of pleated filter disc, which marks its dimensions.
Pleated filter disc (rimmed) specification
Code A B Nom. C Nom. D Nom. Min effective filter area Sq. In.
WPFD-01 0.375 0.300 0.100 0.015 0.22
WPFD-02 0.500 0.420 0.150 0.020 0.66
WPFD-03 0.625 0.490 0.170 0.030 1.00
WPFD-04 0.750 0.615 0.170 0.030 1.60
WPFD-05 1.000 0.875 0.170 0.030 3.25
WPFD-06 1.375 1.250 0.170 0.030 6.60
Pleated filter disc micron rating (μm)
Nominal micron rating Absolute micron rating
2 10
5 20
10 25
20 40
40 75
70 105
105 150
  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Americas
  • Founded Year:1992
  • Address:No. 3481, Yongxing Road, Hengshui City, Hebei Province, China.
  • Contact:yan dong
