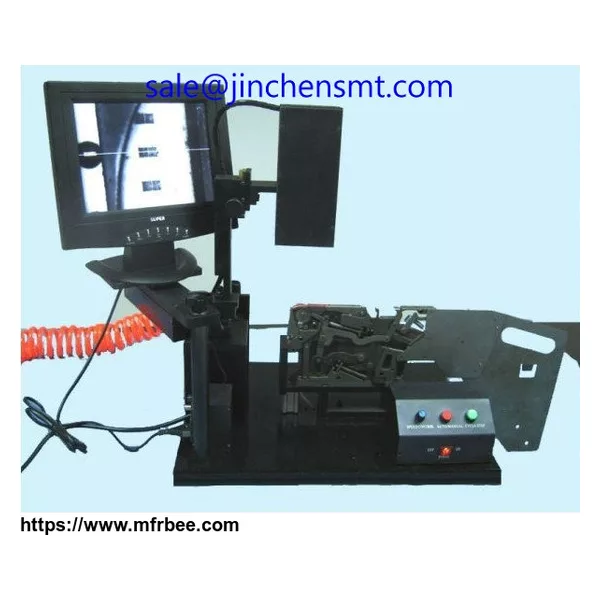

Samsung SM Feeder Calibration JIG
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- sale@jinchensmt.com
- Packaging
- N/A
- Delivery
- 5 Days
Specifications
Specification:
Dimension:500 x 350 x 550 mm , L x W x H
Type:Electric / Pneumatic
Monitor : 12” LED display, with cross mark
Camera : CCD, 50 times magnification
Appliable:Samsung SM series Feeder
Feeder Calibration JIG Feature:
1.It is essential for this equipment that enhanced productivity , installation and quality improvement
2.As the high efficiency vision camera is asked in order to investigate precisely and repair the error of device position which results from the modification and wear of tape feeder in the SMD device.
3.The Feeder, which supplies resources in the SMT production line, should be under clear condition continuously because it has relatively close correclation with the quality of a current line, production efficiency and loss
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2012
- Address:The third floor,No 3, Yanghua Road,Huangdong Village ,Fengguang town
- Contact:Alyssa Huang
