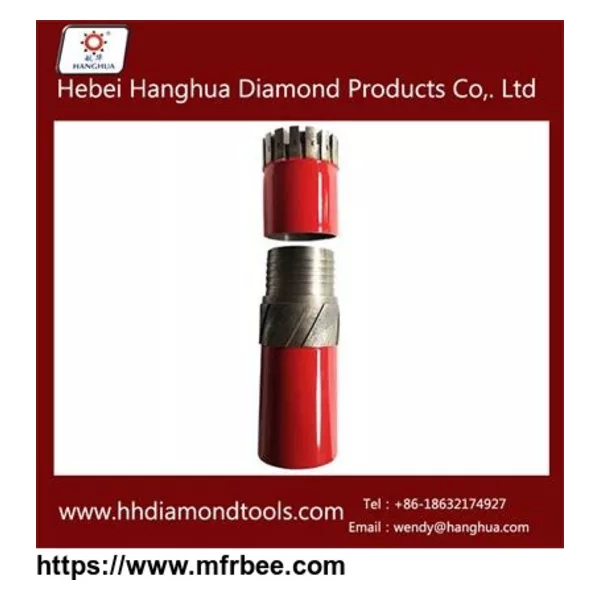

Diamond + PDC Reaming Shell
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Diamond + PDC Reaming Shell
| FEATURES&BENEFITS |
| * Maintains hole diameter longer to prevent new bits from sticking |
| * Improves core quality due to a stabilized core barrel. |
| * Unique design and diamond setting for long service life |
| * Flushing channels designed to ensure low circulation pressure |
| STANDARD SPECIFICATION | |||||||
| ITEM | DIAMOND BIT | REAMING SHELL | |||||
|
"Q" Series Wireline |
Size | Bit-set OD | Bit-set ID | ||||
| mm | inch | mm | inch | mm | inch | ||
| AQ | 47.60 | 1.88 | 26.97 | 1.06 | 48.00 | 1.89 | |
| BQ | 59.50 | 2.35 | 36.40 | 1.43 | 59.90 | 2.36 | |
| NQ | 75.30 | 2.97 | 47.60 | 1.88 | 75.70 | 2.98 | |
| HQ | 95.58 | 3.77 | 63.50 | 2.50 | 96.00 | 3.78 | |
| PQ | 122.00 | 4.80 | 84.96 | 3.35 | 122.60 | 4.83 | |
|
Swedish Metric T2 Series |
36 | 36.0 | 1.417 | 22.0 | 0.866 | 36.3 | 1.429 |
| 46 | 46.0 | 1.811 | 32.0 | 1.260 | 46.3 | 1.823 | |
| 56 | 56.0 | 2.205 | 42.0 | 1.654 | 56.3 | 2.217 | |
| 66 | 66.0 | 2.598 | 52.0 | 2.047 | 66.3 | 2.610 | |
| 76 | 76.0 | 2.992 | 62.0 | 2.441 | 76.3 | 3.004 | |
| 86 | 86.0 | 3.386 | 72.0 | 2.835 | 86.3 | 3.398 | |
| 101 | 101.0 | 3.976 | 84.0 | 3.307 | 101.3 | 3.988 | |
|
Swedish T Series |
TAW | 47.6 | 1.875 | 23.2 | 1.31 | 48.0 | 1.89 |
| TBW | 59.5 | 2.345 | 44.9 | 1.77 | 59.9 | 2.36 | |
| TNW | 75.3 | 2.965 | 60.5 | 2.38 | 75.7 | 2.98 |
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:
- Founded Year:1984
- Address:
- Contact:wendy wang
