3D Security Welded Wire Fencing

FOB Price
USD $500.00 / Piece
Place Of Origin
china
Minimum Order
1
Packaging
N/A
Delivery
15 Days
3D security welded wire fence features pressed horizontal "V" shaped beams, in which a horizontal wire spans the entire width of the panel that could provide added strength and rigidity. As a special kind of welded wire panel, 3D welded wire fence panel is made from galvanized carbon steel or iron wires mostly, which is bent into suitable "V" angle and then welded into panel.

For its unique form, beautiful appearance and medium level of security protection, 3D security welded wire fencing system is ideal for residential and recreational places. And it still offers improved performance and long service life against theft and vandalism on account of its heavy wire, rigid welded structure, fully tightened bolt assembly, the super-durable and environmentally sound powder coating.

Specifications:

3D fence panel
Materials: carbon steel wire, galvanized wire, stainless steel wire, other material available.
Wire diameter: 2–6.5 mm.
Spacing between vertical wires: 50 mm, 55 mm, 60 mm, 75 mm, 80 mm.
Spacing between horizontal wires: 50 mm, 100 mm, 150 mm, 200 mm.
Panel width: 1.5–4.0 m.
Panel height: 0.6–3.0 m.
"V" beams No.: Panels up to 0.9 m/1.2 m/1.8 m height have 2 "V" beams, 2.0 m/2.4 m height have 3 "V" beams.
Surface treatment: 3D fence panels made from galfan wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span.
Colors: RAL 6005 green, RAL 9005 black, RAL 5010 blue, RAL 3000 red, RAL 9010 white. All RAL color is available.
Accessories: posts, post base feet, barbed wire, slotted clamp bars, post cap, bracket, bolts, spacer, nuts, washer, clips, etc.
3D fence posts:
Material: high grade steel for maximum strength and rigidity.
Post section (square and round): 40 × 40 mm, 50 × 50 mm, 60 × 60 mm, 70 × 70 mm, 38 mm, 40 mm, 42 mm.
Post Plate thickness: 1.0–3.0 mm.
Colors: same as panel.
Post cap: metal caps or plastic cap.
Metal clips and clamps are hot dip galvanized then powder coating in green or black color.
Features:

Strength and rigidity: The heavy wire spanning the entire width in the middle of the "V" shaped beams added additional strength and rigidity.
Modern design and attractive surface: The "V" shaped bending curves made the security fence attractive.
Robust and sturdy panels structure: The unique welded workmanship will not made the panel sag or deform easily as common chain link fence.
Fast installation: The panel shaped fence could be jointed together easily by joints to posts and decrease the workload, so as to be efficient, furthermore it is convenient for secondary use.
Visibility: The security fencing protect against theft and vandalism in the meantime offered surveillance ability.
Whether resistance: The galvanized carbon steel wire and PVC coating made the fencing panel resistant to hard weather.
A long service life: The coating is applied over the entire panel and fence accessories, therefore guarantee a long life to serve.
Suitable for both flat and level terrain: In stepped or slopped earth, extra V-braces would be offered for sturdiness.
Applications:
3D security welded wire fence could be used in residential areas, recreational places, public buildings, industrial facilities, airports, schools, playgrounds, sports stadiums.

3D PVC coated fence is fixed upon concrete around a white building.
3DSWWF-02: 3D security welded wire fence applied in a commercial sites, with PVC powder coating guarantees a long life to serve.
Installation:

Posts must be buried into earth, 0.5 m minimum to 1.2 m maximum.
Several panels could be installed on the top of each other to achieve a higher height.
Spacing between brackets in post would better be 0.3 m.
A full installation guide is available upon request.
3D fence panels packaging:
3D fence panels packed in wooden pallets and would be enveloped by plastic film then wrapped by tape firmly for the security of storage and transportation.

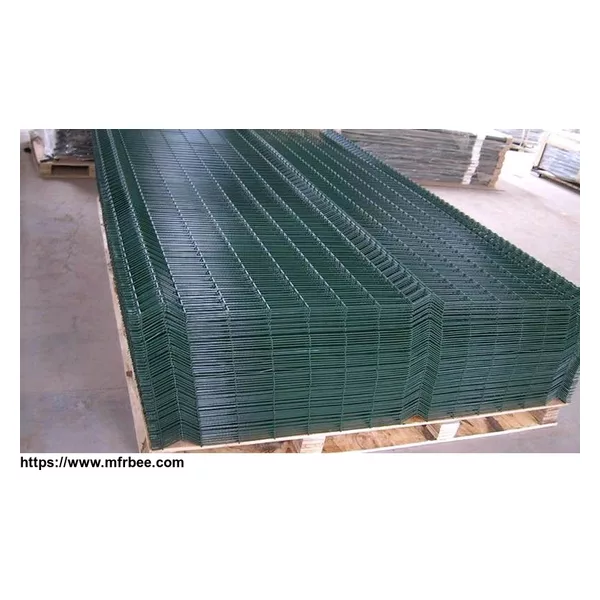

Green 3D fence panels are packed on the top of each other in a wooden pallet.
3DSWWF-03: 3D fence panels put on this pallet are waiting for envelopment and then delivery.
