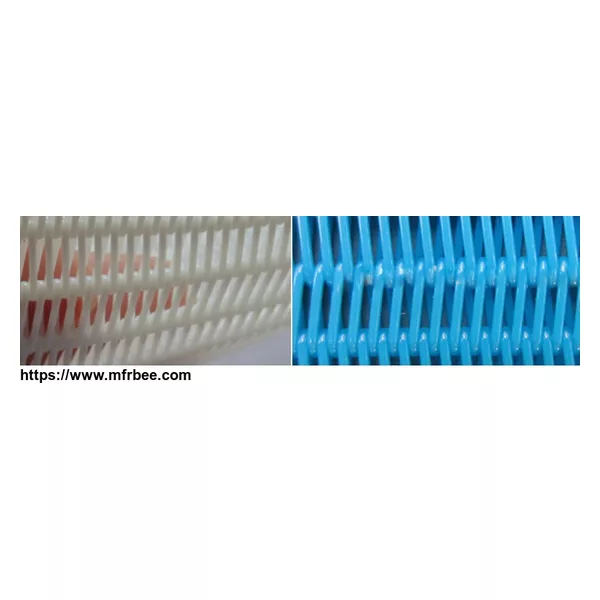

polyester dryer screen for paper drying

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Plain spiral weave dryer mesh clothing is a process filter belt used for drying section in paper processing as well as other drying applications. According to the polyester fiber used, the dryer fabric can be made of two wire types: flat wire or round wire. The primary function of a dryer fabric as process belt in paper making, is to keep the sheet in contact with the dryer cylinders. Polyester dryer screen is heat-set at exacting temperature and tension to give maximum operation stability to ensure maximum heat transfer from the cylinder to the sheet.

24503/22503 Drying Screen designed for multi-cylinder paper machine clothing, for the first three groups of heating dryer cylinders, in production of maximum 70 grams paper and under.

24504/22504/20654/4106 Drying Screen is designed for multi-cylinder paper machine clothing with a higher air permeability. Generally used in the latter part of the dryer paper machine, for the production of papers with more than 70 grams unit weight.

4106-2 / 18688/16904 Model Drying Screen Fabric woven with flat wire, is generally used for multi-cylinder paper making machine, in the first three groups of paper dryer cylinder, for production of high-grade papers.

Application:Polyester ( Dacron) Dryer Fabric Used as Base Conveyor Belt for Drying Materials in Paper Making, Chemical, Sewage Treatment, Non Wovens and Foodstuff.

The synthetic dacron drying cloth enjoys good mechanical strength and high temperature resistance. The fabrics perform stably and consistantly well in a very hot and wet environment, can be used in filter process of many materials: powders, granulates and pastes, slurry, sludge, paper pulp sheet, woods and etc. Excellent resistance to chemical influences enables polyester mesh ideal conveyor belt for chemical industries.

Ployester Spiral Dryer Mesh Fabric for Paper Making Screen Clothing:

PET Monofilament Mesh of Spiral Loops Weave：

Material: high quality Polyester monofilament in 100% PET.

Weave: spiral with or without stuffer yarns

Density: Different as to different specifications.

Loops: Small loop, medium loop, large loop, super loop.

Seam type: Spiral ring joint (spiral link), spiral open ended, stainless steel clipper, etc. Uses and Features: Polyester spiral mesh screen is mainly used in the dryness part of paper-making machines, drying process of printing and dyeing and other industrials.

Country: China (Mainland)
Business Type: Manufacturer
Market:Asia
Founded Year:1991
Address:Rm. 402-1-11, Henghua Mansion Shengli Road, Taocheng Dist., Hengshui, China
Contact:Lee Yeyang

polyester dryer screen for paper drying
