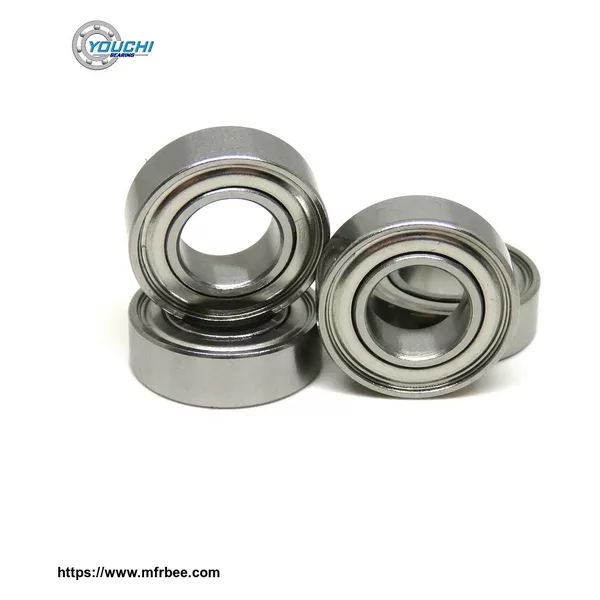

S688ZZ S688 2RS 8x16x5mm stainless steel bearing

Specifications:

·Item:SS688ZZ Ball Bearing

·Type: Deep Groove Ball Bearing

·Closures: 2 Metal Shields

·Lubrication: Self Lubricated (Grease)

·Dimensions:8mm x16mm x5mm

·ID (inner diameter)/Bore:8mm

·OD (outer diameter):16mm

·Width/Height/thickness:5mm

·Size:8x16x5mm

·Equal:SS6882Z &SS688-ZZ

·Weight: 0.0032kg

·Dynamic load rating Cr: 1,150 N

·Static load rating Cor: 510 N

·Precision Rating: P0,P6,P5,P4

·Clearance: C0,C2, C3, C4, C5

·Vibration level codes: V4, V3, V2, V1

·Noise rank: Z1,Z2,Z3 Z4

·Internal elimination code: C0 C2 C3 C4 C5

·Material: Chrome steel (100Cr6,GCr15 )&Stainless steel(420 440 304 316)for you choose

Specification

Material: AISI420, AISI440C, 304, 316 Stainless Steel

Closures: OPEN/ZZ/2RS

Clearance: C0, C1, C2, C3 Available

Accuracy: P0

Grease: 30% ~ 40% MULTEMP SRL

Temperature: -40℃ to + 110℃

Certification: CE/ROHS

Package: 10pcs into plastic tube / Standard Carton outside

Pallet: Wooden or Iron pallet with plastic film against moisture.

Test Property:

Resist at 96H Salt Spray Test

Application:
Stainless Steel Ball Bearings widely used in kitchen appliance, medical device, rowing boat, door & window which near the sea, food machinery, chemical machinery and clearing machine, etc.
