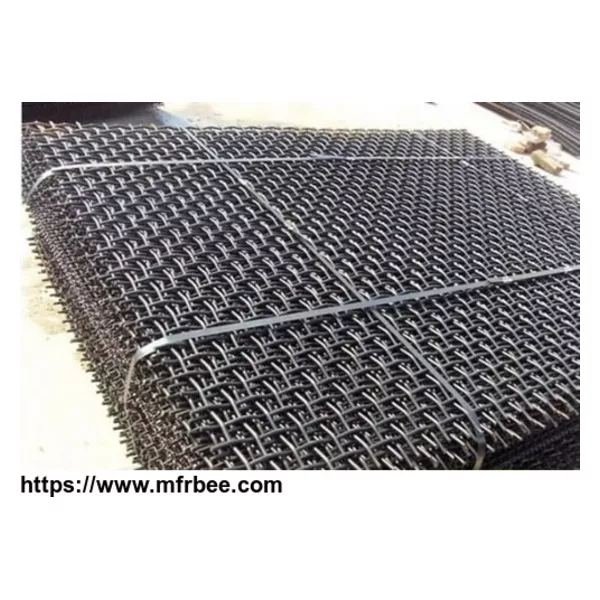

Flat Crimped Wire Knitted SS Mesh

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Knit Wire Netting can be supplied in various stainless steel grades of flat crimped wire: 316SS, SS304, 302, AISI309 or 321. We mainly supply 316 Flat Wire Knitted Mesh, 304 or 302 Knit Mesh Rolls of Crimped Wire, SS309 Wire Mesh of Continuous Knitted Type. We also supply steel alloy wire mesh fabrics such as Teflon Knitted Mesh, Monel and Inconel Knitted Wire to meet specific filter requirements. We can compress our products into various forms. For example: cylindrical, round disc, ring, oval, rectangle, bottle-shaped, as well as various other special shapes.

The ss wire screen is primary filter material for fabricating of gaskets, demisters, eliminators, breathers, mufflers and other kinds of liquid gas separator filters. Various forms of supply include cylinder, round disc, ring, oval, rectangular and circular pad, and special shapes. 304 stainless steel knitted wire mesh of SWG Gauge 36 is popular for USA Market.

Mesh Structures:

The final knitted mesh is in the structure of inter-connecting loops, and it similar to a long knit sock. We can produce monofilament wire, multi-filament, co-knit and multi-strand knitted wire meshes.

Wire diameter commonly ranges from 0.11mm to 0.35mm. For special applications, knit wire as small as 0.03mm or as large as 0.8mm in diameter is available.

SS 304 Knitted Wire Mesh Rolls: Material for making demister pad and seperators.

Material: 304 stainless steel

Wire Diameter: 0.274 mm

Width: 550 mm 570 mm wide

Width: 450 mm wide +/- 10 mm

Width: 350 mm wide +/- 10 mm

Width: 300 mm wide +/- 10 mm

Wire Diameter: 0.20 mm

Hole mesh 6/inch or 50-60 hole mesh per feet

Size: 30 m x 1.2m x 0.2mm

This monofilament wire 304 mesh is demister material. Suitable for making of demister pads of following sizes:

Demister Size and weight: 2'x4'x100mm thickness

Material: 304 Stainless Steel

Bulk Density: 144kg/m3

Demister pad will be made up of Monofilament wire (0.28mm dia) duly knitted and crimped

Demister form: Single piece pad

Pad will be suitably oversized to ensure a snug fit inside the wheel

AISI 304 Wire Mesh Continous Knitted, 6 Meshes for Circular Mist Eliminator Manufacture

Material : AISI 304 wire mesh

Type: Continuous knitted type, 6 meshes per linear inch

Wire Diameter:

SWG36 (wire dia 0.193mm);

SWG30 (Wire dia 0.315mm)

Packing: In bundles. 100mm width rolled into a cylinder of weight appx. 2.5 to 5kgs

Engineering Wire Mesh Knitted 309, Materials for Mesh Gasket and Sealings

Material: Stainless steel SS309

Wire Diameter: 0.20mm

Hole Dimension: Size hole mesh 6 / inch or 50 -60 hole mesh per feet

Size: 30m x 1.2 m x 0.2mm

Standard Type Knitted mesh of 6-12 Stitches, Engine Breather Materials

Material: Stainless Steel AISI304, 316, 321, 430

Wire Dia.: 0.25mm -0.28mm

Stitches: Number of stitches horizontally and vertically on the length of 50 mm = 6-12 stitches.

Web netting width should be not less than 1000mm.

Country: China (Mainland)
Business Type: Manufacturer
Market:Asia
Founded Year:2007
Address:Victory Road No. 11, Taocheng area, Hebei, china
Contact:Rosanna Smith
