Epoxy Coated Steel Wire and Welded Wire Reinforcement

FOB Price
USD $500.00 / Piece
Place Of Origin
china
Minimum Order
500
Packaging
N/A
Delivery
15 Days

Epoxy coated steel wire and welded wire mesh is an important material in the construction projects, they can supply high load capacity and strength for the concrete or earth ground and various base constructions. Compared with the low carbon steel wires, which is easy corrosion and rust, the epoxy coated supplies outstanding corrosion and rust resistance performance. Additional, they are anti-age and weather resistance to ensure the long service life of the welded wire fabric.

Classification of epoxy coating

  • Class A. The coating thickness measurements after curing is higher than 7 mils (175 μm) for both plain and deformed welded wire fabric used for concrete reinforcement. Thickness measurements below 5 mils (125 μm) is should be rejection.
  • Class B. The film thickness of coating should be higher than 18 mils (450 μm) after curing for both plain and deformed steel wire and welded wire fabric used in mechanically stabilized earth applications.

EWR-01: Epoxy coated steel wire.

EWR-02: Epoxy coated welded wire mesh.
Specifications of epoxy coated welded wire mesh for reinforcement in German standard
Ref No. Sth unit Longitudinal wire diameter
(mm)
Cross wire diameter
(mm)
Pitch of wire
(mm)
Mass
(kg/pc)
Mass
(kg/m2)
Q131 Sheet 5.0 5.0 150 @ 150 22.476 2.091
Q188 Sheet 6.0 6.0 150 @ 150 32.401 3.014
Q221 Sheet 6.5/5.0 6.5 150 @ 150 33.707 3.136
Q295 Sheet 7.5/5.5 7.5 150 @ 150 44.245 1.116
Q378 Sheet 8.5/6 8.5 150 @ 150 66.659 5.157
Standard: DIN 488 German.
Sheet size: 2150 mm × 5000 mm.
Specifications of epoxy coated welded wire mesh for reinforcement in British standard
Ref No. Sth unit Longitudinal wire diameter
(mm)
Cross wire diameter
(mm)
Pitch of wire No. Of sheet per ton Mass
(kg/m2)
A393 Sheet 10 10 200 @ 200 15 6.16
A252 Sheet 8 8 200 @ 200 22 3.95
A193 Sheet 7 7 200 @ 200 29 3.02
A142 Sheet 6 6 200 @ 200 40 2.22
A98 Sheet 5 5 200 @ 200 57 1.54
Standard: BS 4483.
Specifications of epoxy coated welded wire mesh for reinforcement in Australia/ New Zealand standard
Ref No. Sth unit Longitudinal wire diameter
(mm)
Edge wire diameter
(mm)
Cross wire diameter
(mm)
Mass
(kg/sheet)
SL81 (F81) Sheet 7.6 @ 100 7.60 @ 100 7.6 @ 100 105
SL102 (F102) Sheet 9.5 @ 200 6.75 @ 100 9.5 @ 200 80
SL92 (F92) Sheet 8.6 @ 200 6 @ 100 8.6 @ 200 66
SL82 (F82) Sheet 7.6 @ 200 5.37 @ 100 7.6 @ 200 52
SL72 (F72) Sheet 6.75 @ 200 4.77 @ 100 6.75 @ 200 41
SL62 (F62) Sheet 6 @ 200 4.77 @ 100 6 @ 200 33
SL52 (F52) Sheet 4.77 @ 200 4.77 @ 100 4.77 @ 200 21
Standard: AS/NZS 4671:2001 Australia/ New Zealand standard. Sheet size: 6000 mm × 2400 mm.

Features of epoxy coated welded wire mesh fabric for reinforcement

  • Temperature resistance.
  • Corrosion and rust resistance.
  • UV resistance.
  • Chemical resistance.
  • Anti-age.
  • Abrasion resistance.
  • High strength.
  • High load capacity.
  • Durable and long service life.

Applications of epoxy coated welded wire mesh fabric

Epoxy coated steel wire and welded wire mesh fabric is widely use in construction sites for concrete and earth reinforcement.
It can also be used as security fence for warehouse, airport, residence, factory and other places security.


EWR-03: Epoxy coated welded wire mesh for bridge reinforcement.

EWR-04: Epoxy coated welded wire mesh for concrete ground reinforcement.

EWR-05: Epoxy coated welded wire mesh fabric for protecting orchard.

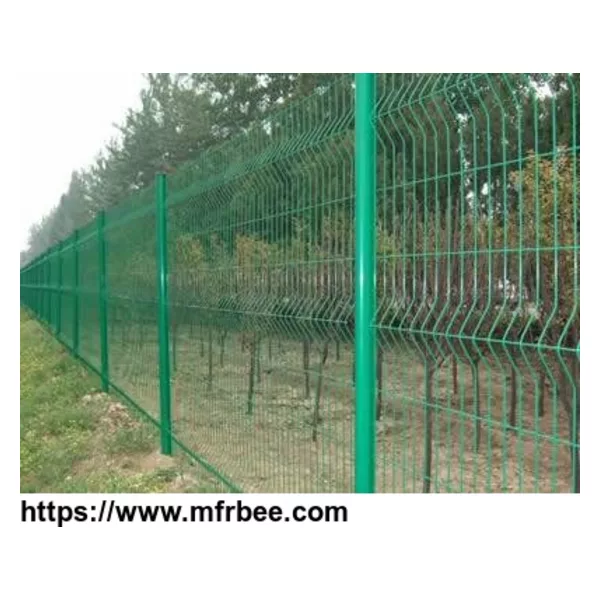

EWR-06: Epoxy coated welded wire mesh for airport security.
  • Country: China (Mainland)
  • Business Type: Trading Company
  • Market:Americas
  • Founded Year:1996
  • Address:East Industrial Zone, Anping, Hebei, China.
  • Contact:yan feng
