foil winding machine

Place Of Origin
China (Mainland)
FOB Price
USD $20,000.00 / Piece
Minimum Order
1
Packaging
wooden cases
Delivery
15 Days
Product Description

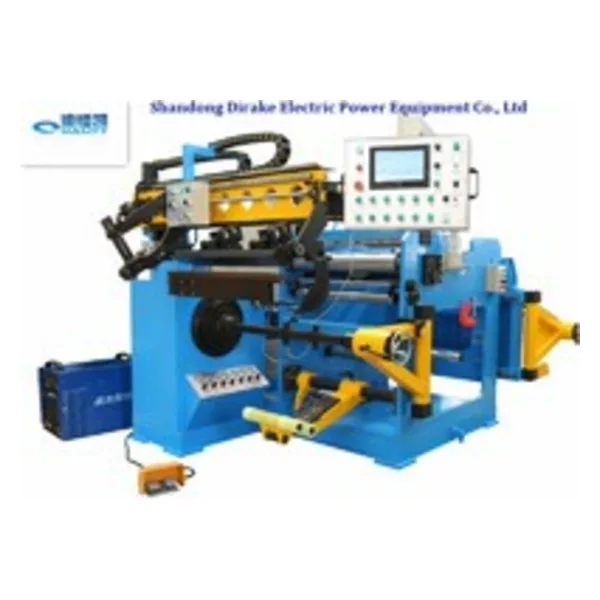

Foil winding machine is suitable for all kinds of coils winding in middle and small electric transformer, circuit transformer, reactor and other similar art. Especially used for rectangular foil coil winding of amorphous and open coil steel core transformer.

MODEL NO FOIL WIDTH FOIL THICKNESS FOIL OUTER DIAMETER MACHINE SIZE INSTALLED CAPACITY FOIL MAX TENSIOn
BRJ-800 ≤800mm 0.5-3mm 100-800mm 3.5*2.8*2(m) 25kw ≤8KN

Application

The BRJ winding machine is suitable for kinds of coils winding in middle and small electrical transformer, circuit transformer, reactor and other similar art. Especially used for rectangular foil coil winding of amorphous and open coil core transformer.

Main composition

(1) 1 foil decoiler
(2) foil feeding unit
(3) foil cleaning unit include burr and dust clean
(4) centering guide
(5) winding unit
(6) lead bar TIG welding unit
(7) foil cutting device
(8) 2 insulation decoilers
(9) edge filling strip units
(10) PLC control pannel
