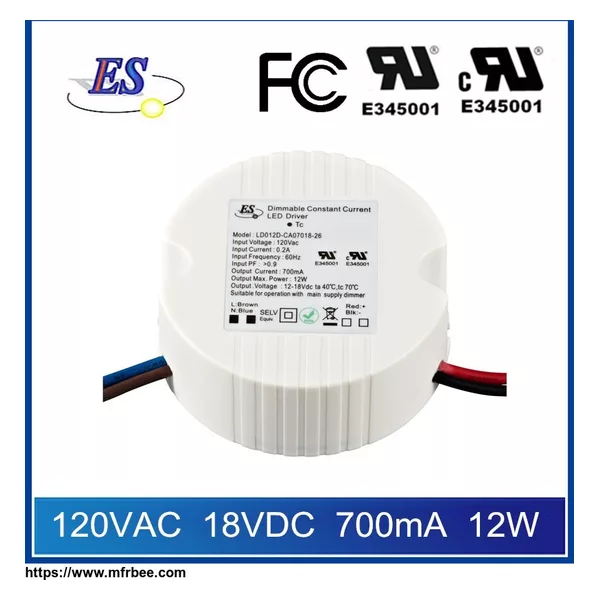

12W Dimmable LED Driver Power Supply with TRIAC Dimmer

Product features:

￭: 120V AC input (up to 127 VAC)

￭: Constant Current design

￭: AC phase-cut dimming at 120VAC

￭: Work with leading edge dimmer

￭: Class 2 Power Supply Unit

￭: Built-in active PFC Function

￭: Fully isolated plastic case

￭: Protections:Over Current/Short Circuit

￭: 3 year warrenty

￭: UL CUL FCC CE approval

Product description:

26 series is 12W AC-DC constant current mode single output LED driver power supply with TRIAC dimming,Leading edge dimmable.

It accepts input 120VAC and provides 3 models with different output voltage/current,

LD012D-CA10012-26:7-12Vdc,1000mA 12W LED driver

LD012D-CA07018-26:12-18Vdc,700mA 12W LED driver

LD012D-CA03536-26:24-36Vdc,350mA 12W LED driver

26 series exploiting Class 2 power supply design and adopting plastic case,circular shape desgin

IP65 ingress protection level allows this series to fit indoor LED light applications.
