CNC machine high precision edm brass wire

FOB Price
USD $5.00 / Piece
Minimum Order
1
Place Of Origin
Henan, China (Mainland)
Packaging
inner:plastic bag out:hard paper box or wooden case or according to your requirement
Delivery
7 Days
Specifications
Type:
Brass Wire
Application:
Machinery
Wire Gauge:
request
Grade:
Cooper Wire
Cu (Min):
as request
Alloy Or Not:
Non-alloy
Ultimate Strength (≥ MPa):
1000
Place of Origin:
Henan, China (Mainland), Henan, China (Mainland)
Brand Name:
bashan
Model Number:
0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
Product name:
CNC machine high precision edm brass wire
Raw Material:
Cuzn35, Cuzn37, H62
Wire Diameter:
0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
Wire Condition:
Hard, Semi-hard, Soft
Conductivity:
Above 20% IACS
Spool Type:
P3, P5, P10, P20, DIN125, DIN160, DIN200
Weight/Spool:
3~20kg
Terms of Payment:
L/C, Western Union, T/T
Certification:
ISO







Packaging & Delivery
Packaging Details:

out:hard paper box or wooden case or according to your requirement" style="margin-top: 0px; margin-right: 0px; margin-bottom: 0px; padding: 4px 0px; border: 0px; font-style: inherit; font-variant: inherit; font-weight: inherit; font-stretch: inherit; font-size: inherit; line-height: inherit; font-family: inherit; vertical-align: baseline; overflow: hidden; white-space: nowrap; text-overflow: ellipsis;">inner:plastic bag
out:hard paper box or wooden case or according to your requirement
Delivery Detail:
one weeks
Product Description

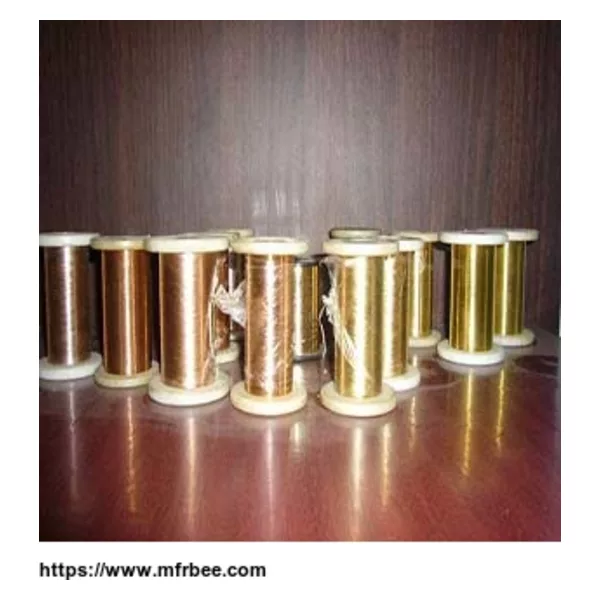

Product description of CNC machine high precision edm brass wire

Brass EDM wire Φ0.3mm~0.1mm
Raw Material: Cuzn35, Cuzn37, H62 mn
Wire Diameter: 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
Wire Condition: Hard, Semi-hard, Soft
Tensile Strength: 1000, 900, 500, 450 N/㎜²
Conductivity: Above 20% IACS
Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200
Weight/Spool: 3~20kg
Packing: PE film sealed, moisture proof, quake proof, corrosion resistance.
Applications: Used on wire-cut machine of Agie, Charmilles, Sodick, Mitsubishi, Makino etc.
