Product Description
China steel mesh manufacturers Brass Wire Mesh:
China steel mesh manufacturers Brass Wire Mesh | |
Material | Copper, brass, tin bronze, phosphor bronze |
General purpose | 1,Copying newsprint, printing paper with 60 to 70 mesh copper mesh 2,Typing paper with 90 to 100 mesh copper network |
Features | 1,good corrosion resistance and wear resistance. 2,Phosphor bronze net, with superior tensile, bending force, wear resistance and 3,stretching force. 4,Brass mesh has appropriate tensile and extensibility, mesh habit per inch in the number of meridians for the mesh. 5,The smaller the mesh, the larger the mesh, the better the water filtration performance. |

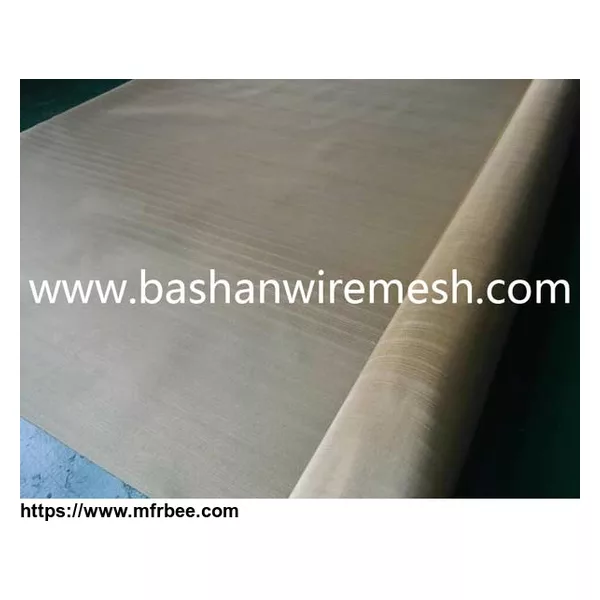

Detailed Images
The specifications of wire mesh:
Mesh NO. | (mm)Aperture size | (mm)Wire Dia | Screening area (%) | Mesh/inch | (Kg/m²) |
5# | 4 | 1 | 64 | 5.08 | 2.52 |
6# | 3.35 | 0.8 | 65 | 6.12 | 2.15 |
3.35 | 0.63 | 71 | 6.38 | 1.39 | |
| 3.15 | 0.8 | 64 | 6.43 | 2.26 |
3.15 | 0.58 | 72 | 6.85 | 1.26 | |
7# | 2.8 | 0.71 | 51 | 7.24 | 2 |
2.8 | 0.56 | 69 | 7.56 | 1.3 | |
| 2.5 | 0.62 | 64 | 8.12 | 1.71 |
2.5 | 0.5 | 69 | 8.47 | 1.16 | |
8# | 2.36 | 0.56 | 65 | 8.7 | 1.5 |
2.36 | 0.45 | 71 | 9.04 | 1 | |
10# | 2 | 0.5 | 64 | 10.2 | 1.69 |
2 | 0.45 | 59 | 10.6 | 1.18 | |
| 1.9 | 0.6 | 58 | 10.2 | 2.01 |
1.9 | 0.5 | 63 | 10.6 | 1.46 | |
1.8 | 0.45 | 64 | 11.3 | 1.26 | |
12# | 1.7 | 0.45 | 63 | 11.8 | 1.31 |
1.7 | 0.4 | 66 | 12.1 | 1.06 | |
| 1.6 | 0.45 | 61 | 12.4 | 1.38 |
1.6 | 0.4 | 64 | 12.7 | 1.12 | |
1.5 | 0.4 | 62 | 13.4 | 1.17 | |
14# | 1.4 | 0.4 | 60 | 14.1 | 1.24 |
1.4 | 0.355 | 64 | 14.5 | 1 | |
1.32 | 0.4 | 59 | 14.8 | 1.3 | |
1.25 | 0.4 | 57 | 15.4 | 1.35 | |
1.25 | 0.315 | 54 | 16.2 | 0.88 | |
16# | 1.18 | 0.4 | 56 | 16.1 | 1.41 |
1.18 | 0.315 | 52 | 17 | 0.92 | |
1.12 | 0.355 | 58 | 17.2 | 1.19 | |
1.12 | 0.28 | 54 | 16.1 | 0.69 | |
1.06 | 0.355 | 56 | 16 | 1.11 | |
1.06 | 0.28 | 53 | 19 | 0.81 | |
18# | 1 | 0.355 | 54 | 18.8 | 1.3 |
1 | 0.25 | 54 | 20.3 | 0.69 | |
0.95 | 0.355 | 53 | 19.5 | 1.35 | |
0.9 | 0.355 | 51 | 20.2 | 1.4 | |
20# | 0.85 | 0.315 | 53 | 21.8 | 1.19 |
0.85 | 0.224 | 53 | 23.7 | 0.65 | |
| 0.8 | 0.315 | 51 | 22.8 | 1.24 |
0.8 | 0.2 | 64 | 25.4 | 0.56 | |
0.75 | 0.315 | 50 | 23.8 | 1.29 | |
0.75 | 0.28 | 53 | 24.7 | 1.06 | |
25# | 0.71 | 0.28 | 51 | 25.7 | 1.11 |
0.71 | 0.2 | 61 | 27.9 | 0.61 | |
| 0.67 | 0.28 | 50 | 26.7 | 1.15 |
0.63 | 0.25 | 51 | 28.9 | 0.99 | |
0.63 | 0.2 | 58 | 30.8 | 0.68 | |
30# | 0.6 | 0.25 | 50 | 29.9 | 1.02 |
0.6 | 0.18 | 59 | 32.6 | 0.58 | |
| 0.56 | 0.224 | 51 | 32.4 | 0.89 |
0.56 | 0.18 | 57 | 34.3 | 0.61 | |
0.53 | 0.224 | 49 | 33.7 | 0.93 | |
0.53 | 0.18 | 56 | 35.8 | 0.64 | |
35# | 0.5 | 0.224 | 48 | 35.1 | 0.98 |
0.5 | 0.16 | 57 | 38.5 | 0.54 | |
| 0.475 | 0.16 | 53 | 38.9 | 0.55 |
0.45 | 0.18 | 51 | 40.3 | 0.72 | |
0.45 | 0.14 | 58 | 43.1 | 0.46 | |
40# | 0.425 | 0.16 | 53 | 43.4 | 0.61 |
0.425 | 0.14 | 57 | 45 | 0.49 | |
0.4 | 0.16 | 51 | 45.4 | 0.64 | |
0.4 | 0.14 | 56 | 47 | 0.51 | |
0.375 | 0.16 | 49 | 47.5 | 0.69 | |
0.375 | 0.125 | 56 | 50.8 | 0.44 | |
45# | 0.355 | 0.14 | 51 | 51.3 | 0.55 |
0.355 | 0.125 | 55 | 52.9 | 0.45 | |
0.315 | 0.14 | 49 | 55.8 | 0.6 | |
0.315 | 0.125 | 51 | 57.7 | 0.49 | |
50# | 0.3 | 0.14 | 46 | 57.7 | 0.62 |
0.3 | 0.112 | 53 | 61.6 | 0.42 | |
60# | 0.25 | 0.125 | 44 | 67.7 | 0.58 |
0.25 | 0.1 | 51 | 72.6 | 0.4 | |
| 0.236 | 0.125 | 43 | 70.4 | 0.61 |
0.224 | 0.125 | 41 | 72.8 | 0.63 | |
0.224 | 0.09 | 51 | 80.9 | 0.36 | |
70# | 0.212 | 0.125 | 40 | 75.4 | 0.65 |
0.212 | 0.09 | 49 | 84.1 | 0.37 | |
0.2 | 0.125 | 39 | 78.2 | 0.68 | |
0.2 | 0.08 | 51 | 90.7 | 0.32 | |
0.19 | 0.125 | 36 | 80.6 | 0.69 | |
80# | 0.18 | 0.125 | 35 | 83.3 | 0.74 |
0.18 | 0.071 | 51 | 101 | 0.28 | |
| 0.17 | 0.112 | 36 | 90.1 | 0.62 |
0.17 | 0.063 | 53 | 109 | 0.24 | |
0.16 | 0.112 | 35 | 93.4 | 0.64 | |
0.16 | 0.063 | 51 | 114 | 0.25 | |
100# | 0.15 | 0.1 | 38 | 102 | 0.56 |
0.15 | 0.063 | 50 | 119 | 0.26 | |
| 0.14 | 0.09 | 37 | 110 | 0.49 |
0.14 | 0.063 | 48 | 125 | 0.27 | |
0.132 | 0.09 | 35 | 114 | 0.51 | |
120# | 0.125 | 0.09 | 34 | 118 | 0.53 |
| 0.118 | 0.05 | 36 | 128 | 0.18 |
| 0.112 | 0.08 | 34 | 132 | 0.46 |
0.112 | 0.063 | 41 | 145 | 0.32 | |
140# | 0.106 | 0.071 | 36 | 144 | 0.4 |
0.106 | 0.05 | 40 | 163 | 0.22 | |
| 0.1 | 0.071 | 34 | 149 | 0.41 |
0.1 | 0.05 | 44 | 169 | 0.23 | |
| 0.095 | 0.063 | 36 | 161 | 0.35 |
170# | 0.09 | 0.063 | 35 | 166 | 0.36 |
0.09 | 0.05 | 40 | 181 | 0.25 | |
| 0.085 | 0.056 | 36 | 180 | 0.31 |
| 0.08 | 0.056 | 36 | 187 | 0.32 |
0.08 | 0.04 | 44 | 212 | 0.19 | |
200# | 0.075 | 0.05 | 33 | 194 | 0.33 |
0.075 | 0.045 | 39 | 212 | 0.24 | |
| 0.071 | 0.056 | 31 | 200 | 0.34 |
0.067 | 0.05 | 33 | 217 | 0.3 | |
230# | 0.063 | 0.045 | 34 | 235 | 0.26 |
0.063 | 0.04 | 37 | 247 | 0.22 | |
| 0.06 | 0.045 | 33 | 242 | 0.27 |
0.056 | 0.04 | 34 | 265 | 0.23 | |
270# | 0.053 | 0.04 | 33 | 273 | 0.24 |
0.053 | 0.032 | 39 | 300 | 0.17 | |
| 0.05 | 0.036 | 34 | 295 | 0.21 |
0.05 | 0.03 | 39 | 317 | 0.16 | |
0.048 | 0.032 | 36 | 318 | 0.18 | |
325# | 0.045 | 0.036 | 31 | 314 | 0.22 |
0.045 | 0.028 | 38 | 348 | 0.11 | |
| 0.04 | 0.03 | 32 | 363 | 0.18 |
400# | 0.038 | 0.025 | 36 | 403 | 0.14 |
500# | 0.025 | 0.025 | 31 | 508 | 0.14 |
0.028 | 0.022 | ||||
600# | 0.02 | 0.02 | | 635 | 0.13 |
Note: Screen material: H68, H80, QSn6.5-0.4, SUS304, SUS316, SUS316L, SUS304HP
According to user requirements to provide screen to add series size
China steel mesh manufacturers Brass Wire Mesh
Our Company:
Xinxiang Bashan Aero Material Co., Ltd.
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products,
Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as
GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national
military defense standard; HB, aviation standard.)
Our Certifications:
1)Passed ISO9001:2008 quality certificate
2)Passed ISO/TS16949:2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Packing & Delivery:
SUS304 SUS316 Series Stainless Steel Wire Mesh
Our most professional packaging
