Description
Top Quality Brass Copper Wire
Product Name | Top Quality Brass Copper Wire |
composition | Cu60%,Zn40% or Cu63%,Zn37% |
Wire diameter | 0.30mm,0.25mm,0.20mm,0.15m |
Weight/Spool | 3kgs/5kgs/7kgs/8kgs/15kgs/20kgs |
Packing | Vacuum packing, sealed with PVC cellephane, moisture proof, quakeproof, and corrosion resistance. |
Used | cutting mould as electrode |
Specification
Top Quality Brass Copper Wire
Condition | Diameter(mm) | Tolerance(mm) | Tensile Strength (N/mm²) | Type of Spool (Standard Weight) |
Hard | 0.10 | ±0.001 | ≥980 | DIN125(3kg,3.5kg |
0.15 | ±0.001 | ≥980 | ||
0.20 | ±0.001 | ≥980 | DIN125(3kg,3.5kg) p5(5kg) | |
0.25 | ±0.001 | ≥980 | ||
0.30 | ±0.001 | ≥980 | ||
Semi-hard | 0.25 | ±0.001 | 480~520 | |
0.30 | ±0.001 | |||
Soft | 0.25 | ±0.001 | 380~420 | |
0.30 | ±0.001 |

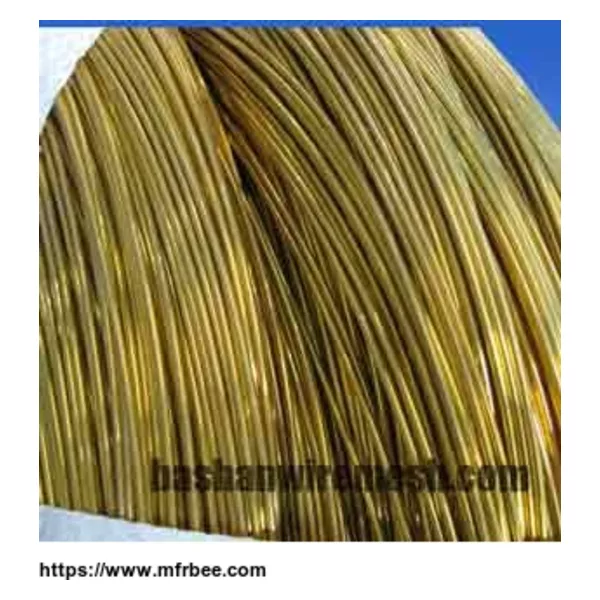

Products Show
Features
Top Quality Brass Copper Wire
1.High dimentional accuracy.
2.Diameter tolerence is kept to +0 ~ -0.002mm and circularity within 0.001mm.
3.Outstanding straightness
4.Stable mechanical properties
5.Tensil strength, elongation, breaking load, etc. are checked with automatic measuring equipment to ensure stable quality.
6.Ultra-smooth surface
* Vacuum packing,sealed with PVC cellophane,moistureproof,quakeproof,and corrosion resistance.
* Common products in one week.
* 100 Kilogram/Kilograms
* Payment terms: T/T, L/C , Paypal, West Union etc.
* Trade term: EXW/ FOB/ CIF.
International market
Material | Type | D1 | D2 | d | W1 | W2 | Spool/box | Spool W (k) | Volum/box |
ABS | DIN125 | 125 | 80 | 20 | 125 | 100 | 4 | 0.2 | 0.254X0.254X0.127=0.008M3 |
P3 | 130 | 80 | 20 | 110 | 90 | 4 | 0.2 | 0.264X0.224X0.132=0.008M3 | |
P5 | 160 | 90 | 20 | 114 | 90 | 4 | 0.33 | 0.324X0.232X0.18=0.014M3 | |
DIN160 | 160 | 100 | 22 | 160 | 128 | 2 | 0.35 | 0.324X0.162X0.18=0.009M3 | |
DIN200 | 200 | 125 | 22 | 200 | 160 | 1 | 0.66 | 0.22X0.22X0.22=0.01M3 |
Our Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Our Company
Xinxiang Bashan Aero Material Co., Ltd.
In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
