Hinge joint fence, a type of field fence, comes with knots formed by winding the vertical wires around the horizontal wire at each junction. They are specially designed to handle stock pressure and capable for various applications. For example:

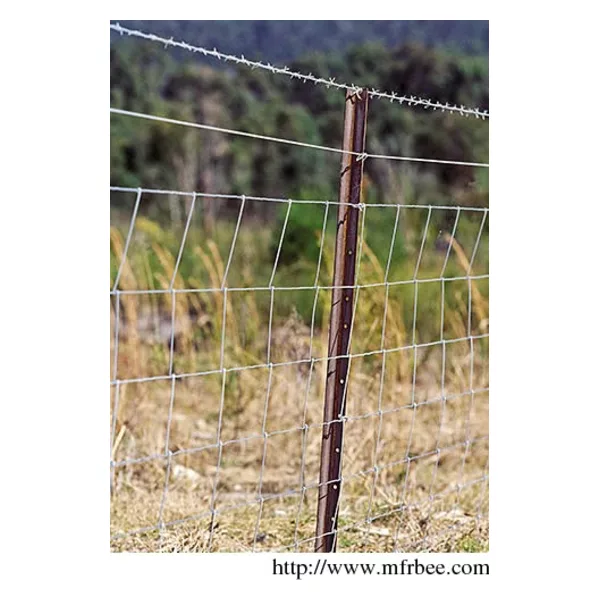

Hinge joint fence for protecting rural farms
Spiral design
Capable to absorb the fierce impact energy from animals and bring back to the original shape without damages comparing with fixed knots fence.
Tension curves
Makes the hinge joint fence more elastic and impact resistant.
Smooth surface
Smooth without sharp points so that there is no harm to your prized animals, not to mention being caught to the fence wire.
Hinge joint fence | |||||
---|---|---|---|---|---|
Item | No. horizontal wire | Fence height | Stay opening | Inside wire gauge | Top & bottom wire gauge |
HJF-1 | 7 | 26" | 6" or 12" | 11 | 9 |
HJF-2 | 7 | 26" | 6" or 12" | 12.5 | 10 |
HJF-3 | 8 | 32" | 6" or 12" | 11 | 9 |
HJF-4 | 8 | 32" | 6" or 12" | 12.5 | 10 |
HJF-5 | 9 | 39" | 6" or 12" | 9 | 9 |
HJF-6 | 9 | 39" | 6" or 12" | 11 | 9 |
HJF-7 | 9 | 39" | 6" or 12" | 12.5 | 10 |
HJF-8 | 10 | 47" | 6" or 12" | 9 | 9 |
HJF-9 | 10 | 47" | 6" or 12" | 11 | 9 |
HJF-10 | 10 | 47" | 6" or 12" | 12.5 | 10 |
HJF-11 | 11 | 56" | 6" or 12" | 9 | 9 |
HJF-12 | 11 | 56" | 6" or 12" | 11 | 9 |
HJF-13 | 11 | 56" | 6" or 12" | 12.5 | 10 |
HJF-14 | 6 | 32" | 6" or 12" | 11 | 9 |
HJF-15 | 6 | 32" | 6" or 12" | 12.5 | 10 |
HJF-16 | 7 | 36" | 6" or 12" | 11 | 9 |
HJF-17 | 7 | 36" | 6" or 12" | 12.5 | 10 |
HJF-18 | 8 | 45" | 6" or 12" | 9 | 9 |
HJF-19 | 8 | 45" | 6" or 12" | 11 | 9 |
HJF-20 | 8 | 45" | 6" or 12" | 12.5 | 10 |
HJF-21 | 9 | 49" | 6" or 12" | 9 | 9 |
HJF-22 | 9 | 49" | 6" or 12" | 11 | 9 |
HJF-23 | 9 | 49" | 6" or 12" | 12.5 | 10 |
HJF-24 | 9 | 43.5" | 6" or 12" | 9 | 9 |
HJF-25 | 9 | 43.5" | 6" or 12" | 11 | 9 |
HJF-26 | 9 | 43.5" | 6" or 12" | 12.5 | 10 |
HJF-27 | 10 | 52.5" | 6" or 12" | 9 | 9 |
HJF-28 | 10 | 52.5" | 6" or 12" | 11 | 9 |
HJF-29 | 10 | 52.5" | 6" or 12" | 12.5 | 10 |
