Metal Cascade Mini Ring- a Random Packing with Low Pressure Drop
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Metal Cascade Mini Ring for Packing Towers
Metal cascade mini ring is a kind of random packing made of carbon steel or stainless steel. Metal cascade mini ring, whose ratio of height to diameter is 1:2, is commonly a cylinder with several windows open on the surface and a trumpet-shaped expanded opening at one end. The four most popular nominal diameters of metal cascade mini ring, widely applied to industrial manufacture, are DN 25, DN 38, DN 50 and DN 76 mm.
This kind random packing has higher mass transfer efficiency and better separation effect than the metal intalox saddle

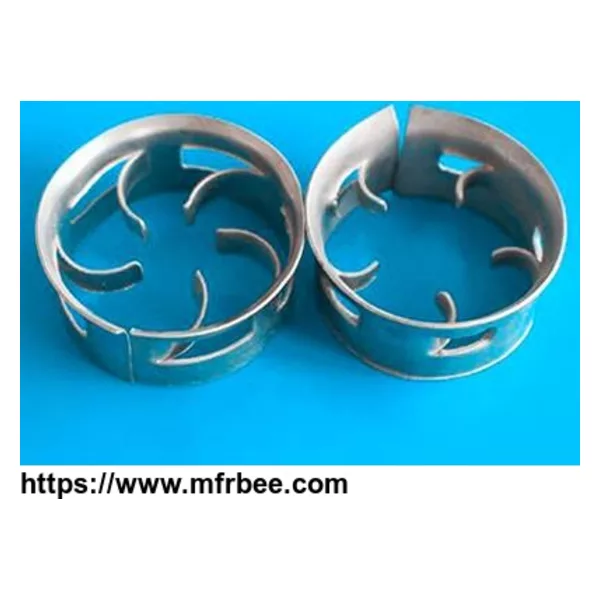

MCMR-01: Metal cascade mini ring is a kind of random packing made of carbon steel or stainless steel.
MCMR-02: Metal cascade mini ring is commonly a cylinder with several windows open on the surface.
MCMR-03: Metal cascade mini ring has excellent stain resistance.
| Model | Nominal diameter (mm) | Diameter × Height × Thickness D × H × δ (mm) | Bulk number (m-3) | Bulk density (kg/m3) | Specific surface area (m2/m3) | Void volume (m3/m3) | Dry packing factor (m-1) |
|---|---|---|---|---|---|---|---|
| MCMRS-01 | DN 76 | 76 × 38 × 1.2 | 3540 | 306 | 72 | 0. 961 | 81 |
| MCMRS-02 | DN 50 | 50 × 25 × 0.8 | 12340 | 308 | 109 | 0.961 | 123 |
| MCMRS-03 | DN 38 | 38 × 19 × 0.6 | 30040 | 325 | 153 | 0. 959 | 173 |
| MCMRS-04 | DN 25 | 25 × 12.5 × 0.5 | 98120 | 383 | 221 | 0. 951 | 257 |
| Suitable temperature range: less than or equal to 400 °C. |
| Model | Nominal diameter (mm) | Diameter × Height × Thickness D × H × δ (mm) | Bulk number (m-3) | Bulk density (kg/m3) | Specific surface area (m2/m3) | Void volume (m3/m3) | Dry packing factor (m-1) |
|---|---|---|---|---|---|---|---|
| MCMRS-05 | DN 76 | 76 × 38 × 1.5 | 3540 | 385 | 72 | 0.951 | 84 |
| MCMRS-06 | DN 50 | 50 × 25 × 1.0 | 12340 | 385 | 111 | 0.951 | 129 |
| MCMRS-07 | DN 38 | 38 × 19 × 0.8 | 30040 | 433 | 154 | 0.945 | 183 |
| MCMRS-08 | DN 25 | 25 × 12.5 × 0.6 | 98120 | 459 | 222 | 0.942 | 266 |
| Suitable temperature range: less than or equal to 350 °C. |
Features
Metal cascade mini ring has low pressure drop, high flux, high efficiency, high load elasticity and excellent stain resistance.
Application
- Metal cascade mini ring is commonly applied to desulfurization and decarbonization system in fertilizer factories.
- Metal cascade mini ring is commonly used for separation and absorption of crude distillation units.
Package
Metal cascade mini rings are packed in dry and high-strength boxes lined with moisture-resistant materials.
