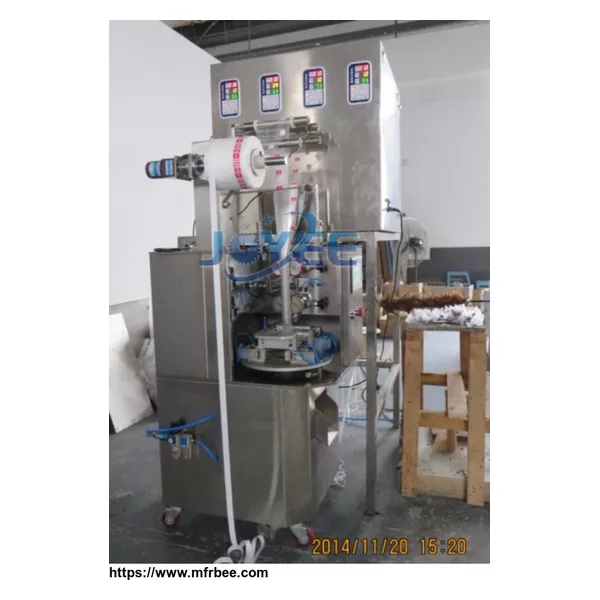

The inner pyramid tea bag packing machine is a new type of ultrasound sealing packing machine, which has multi-function can automatically packing tea or other herbs into pyramid/triangle shape tea bags, avoiding hands directly contacting with stuff materials, improving the efficiency.
The packing material can be made of nylon mesh, with or without thread & tag.
The advantages are photoelectric location for the tag, adjustment to the need of the content, length of tea bag. The dimension of pyramid tea bag decided by the packing film size, there are 120mm, 140mm, 160mm raw material optional.
Nylon mesh, PET mesh, biodegradable corn fabric material film with thread and tag.
|Filling accuracy||±2% (affected by product features also）|
|Sealing method||Ultrasound sealing for inner tea bag, heat sealing for envelop bag|
|Inner tea bag size||60-80mm(W) * 40*80mm(L)|
|Outer bag width||70-110mm|
|Outer bag length||Adjustable|
|Inner packing film width||120mm, 140mm, 160mm optional|
|Inner tea bag shape||Triangle shape tea bag, flat tea bag optional|
|Inner bag filling range||2-10ml|
Inner bag: Nylon, non woven fabric, or PET mesh etc;
Outer bag: heat sealable composition material.
|Air consumption||0.6Mpa, 0.4M3/min|
|Power||220V, 50/60Hz, 4Kw(for full line)|
|Machine dimension||1100*900*1900mm for pyramid tea bag packing machine|
|Machine weight:||650kg for pyramid tea bag packing machine|
