Product Application

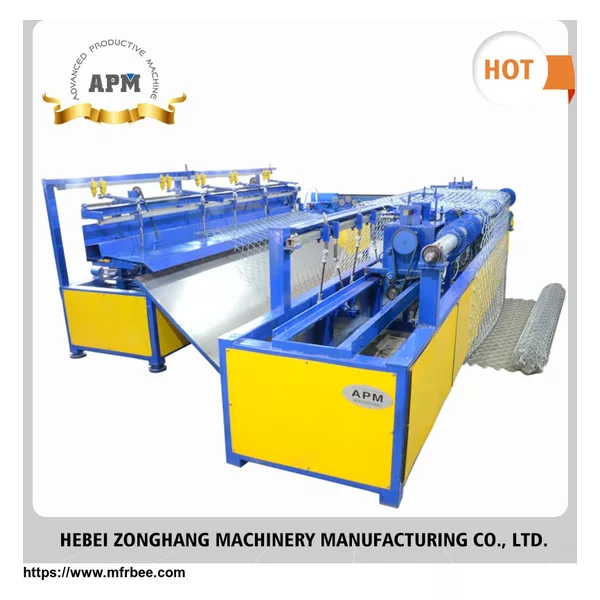

Chain Link Fence Machine is suitable for producing various fence neeting. It is widely used to prodce the stadium
fence,green fence,river protection fence,warehouse isolation fence,basketball court defensive fence etc.
SPECIFICATIONS FOR CHAIN LINK FENCE MACHINE | |
Wire Diameter | 1.5-4.5mm |
Mesh Size | 20-100mm |
Mesh Width | 600-4000mm |
Capacity | 60-120m 2/hour |
Rated Voltage | 380/220V 50HZ |
Motor Power | 11Kw |
Weight | 4T |
Outside | 4900*4500*2500mm |
Main Features
1)The chain link machine for manufacturing chain link fences of different sizes.
2)The wire is taken in form the payoff stand and passed through the dies where the DIAMOND SIZE takes place.
3)Different gapsizes.after passing from the die the diamond pattern wire is automatically thrown on the winding
shaft in the stitching process.Once the stitching is complete the woven is manually glided down toenable the text
stitch to take place.
4)The chain link is automatic wound to form rolls when the desired length is manufactured.
5)The machine is controlled by PLC automatic controller,so only one person is needed to operate it.Using
compacting machine to make it into rolls.
Machine Parts Name: CNC Panel Function: Human-computer operation interface. Ajust the work condition at the right moment. Show the work condition and production in the time and accurate. Feature: Friendly,Conveniently,Accuratly. |
Machine Parts Name: AC Servo Motor Function: Accurate control speed and position accuracy can not be changed by the speed adjustment. At the stable-speed runing condition,the fence is smooth and uniform. At the high-speed running and powerful torque condition,the high production is ensured. Feature: Starting Quick,High Sensitivity,Stable Operation,Wide Speed Range. |
Machine Parts Name: Straightening Wheel (four ) Function: Straightening the wire with good formability. Feature: Every one can be ajusted up and down |
Machine Parts Name: Knitting Nail Function: It make the wire into finished product-chain link fence. It can determined width of fence |
Machine Parts Name: Torsion Tool Function: The can produce the chain link fence with different opening size or wire diameter. Feature: Durable,High precision. |
Machine Parts Name: Bending Tool Function: It bends the edge of chain link fence. |
You will learn more about the operation of chain link fence machine,when you view the video.
Q1. Are you trading company or manufacturer ?
A: We are manufacturer
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3.How to learn the operation of your machine?
A: 1) We can send our engineer to your factory for training
2) You can send your machine operator to our factory
3) We can send you a video for learning
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 40 days after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
