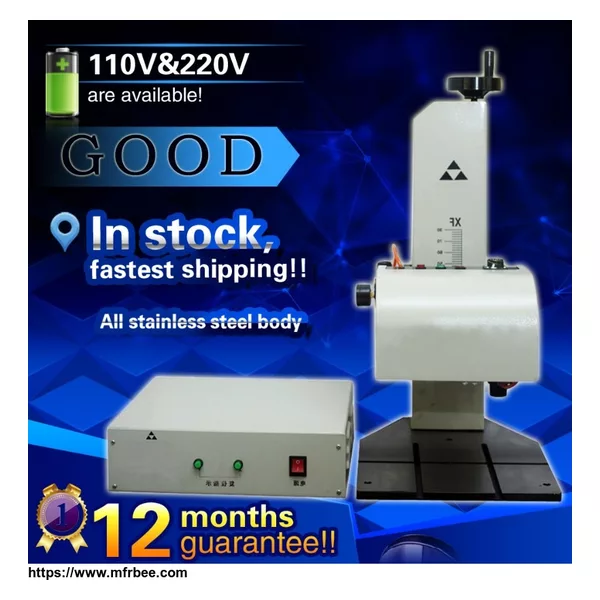

automatic pneumatic marking machine,aluminum coding machine,labelprinter,metal parts engraving machine,labelembossor

Feature:

pin marking machine can make on metal and non-metal. Parts in a variety of materials to print any graphics and Chinese and English characters, any editing

regulation, with automatic print the date and serial number, VIN code, engine numbers and other functions,

can be communications networking; dimensional table is precision die casting, straight rolling guide,

fully enclosed, self-lubricating bearings, and high reliability. WINDOWS platform control software, can automatically print the serial

number, with networking, communication capabilities.

Applications:

suitable for large workpieces, or small objects such nameplate , it’s high practicality.

Specification:

Marking speed	3-5 characters/s
Hitting frequency	300HZ
Marking depth	0.1-1mm(according to the workpiece material )
Marking accuracy	0.02mm
Marking scope	120*90mm (customization any marking area )/360 degree
Pinhead hardness	HRA92
Workpiece hardness allowed	≤HRC65
Inputting air pressure	0.3-0.6MPA
Power consumption	≤200W
Voltage	AC220V±10%,50Hz
Working Temperature	0-40
Relative humidity	≤90%
