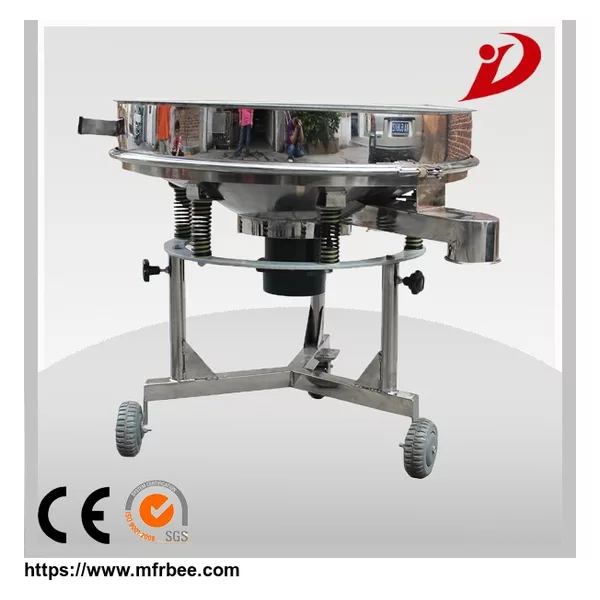

high frequency vibrating screen
Product sourcing details
- Place of Origin
- china
- Packaging
- Wooden packing. the packing size should be according to the actual size
Supplier: Xinxiang Dayong Vibration Equipment CO.,LTD
Purchasing information
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications
Application
1. Chemical: Resin powder, palette, washing powder, paint, soda and citric acid, etc.
2. Abrasive material and ceramic industry: alumina, arnaceous quartz, slurry, and spray soil grain etc.
3. Food industry: Sugar, salt, Alkali, monosodium glutamate, milk powder, soybean milk, yeast, juice, soy sauce, vinegar etc.
4. Paper Making Industries: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials, etc.
Features and Fuctions
1.High frequency vibrating screen has self-cleaning function
2.The mesh can not be blocked up
3.High granularity
4.with activities frame
5.low noise,high frequency of screening
Technical parameters
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-450 0.18kw 420mm 180N 50kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-600 0.55KW 550mm 350N 65kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-800 0.75KW 760mm 680N 78kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-1000 1.5KW 930mm 1000N 130kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-1200 1.75KW 1130mm 1300N 17kg
1. Chemical: Resin powder, palette, washing powder, paint, soda and citric acid, etc.
2. Abrasive material and ceramic industry: alumina, arnaceous quartz, slurry, and spray soil grain etc.
3. Food industry: Sugar, salt, Alkali, monosodium glutamate, milk powder, soybean milk, yeast, juice, soy sauce, vinegar etc.
4. Paper Making Industries: Coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
5. Metallurgy and mining: Titanium oxide, zinc oxide, electromagnetism materials, metal materials, welding rod materials, etc.
Features and Fuctions
1.High frequency vibrating screen has self-cleaning function
2.The mesh can not be blocked up
3.High granularity
4.with activities frame
5.low noise,high frequency of screening
Technical parameters
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-450 0.18kw 420mm 180N 50kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-600 0.55KW 550mm 350N 65kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-800 0.75KW 760mm 680N 78kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-1000 1.5KW 930mm 1000N 130kg
Model Power of Motor Valid Diameter of screen Exciting Force weight
DY-G-1200 1.75KW 1130mm 1300N 17kg
