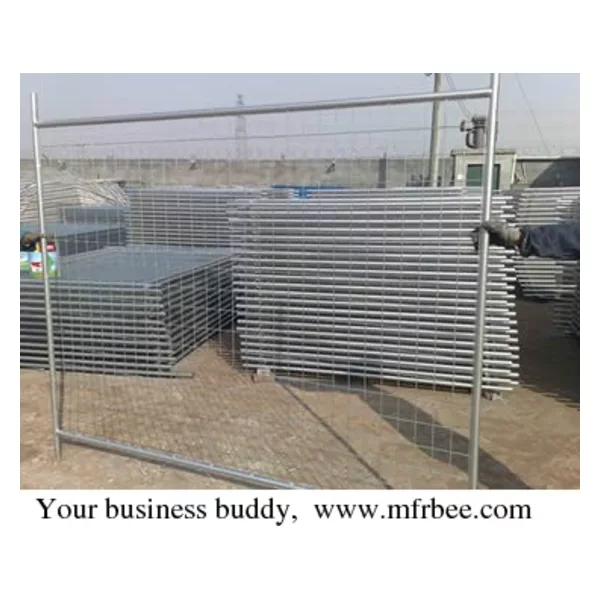

Welded temporary fencing, made of welded wire mesh and tubular frame, is the commonest type in Australia for securing construction site and provide a safe environment to general public.
Welded temporary fencing with pressed end for higher strength
Different from temporary hoarding, this one is visible without any sight blocks. Sturdy with structural strength to support itself, it performs perfect regardless of the harsh environments with high wind. So there is no need of fence bracing unless the cloth shade is fixed on the panel with additional wind load. Additionally, our welded temporary fencing incorporates the following features:
With all these features, the welded temporary fencing is widely used in a comprehensive range of applications, for example:
As your request, the panels are available with square top and round top. The square one is easy to combine added panels or barbed wire on the top for additional security, however, the round one features with less weld points for greater overall strength.
Square top welded temporary fencing
Round top welded temporary fencing
Most of our products are manufactured complying to Australia standards, the most used temporary fencing are list below including standard type, economic type, luxury type, heavy duty and light duty type. Meanwhile, custom sizes are also available.
Australia style | Standard temporary fence | Economic temporary fence | Luxury temporary fence | Heavy duty (with reinforcing pipe in the middle) | Light duty |
Panel length | 2400mm | 2400mm | 2400mm | 2900mm 3000mm 3300mm | 2300mm |
Panel height | 2100mm | 2100mm | 2100mm | 2100mm | 1800mm |
Pipe zinc thickness | 42 microns | 21 microns | 84 microns | 42 microns | 42 microns |
Wire zinc thickness | 28 microns | 14 microns | 84 microns | 28 microns | 28 microns |
Pipe outer diameter | 32mm | 32mm | 32mm | 32mm | 32mm |
Pipe thickness | 2mm | 1.4mm | 3.5mm | 2mm | 2mm |
Wire diameter | 4mm | 3mm | 4mm | 4mm | 4mm |
Mesh opening | 60×150mm | 60×150mm | 50×50mm 50×150mm 60×150mm | 60×150mm | 60×150mm |
Quality guarantee | 6 years without rust | 3 years without rust | 30 years without rust | 6 years without rust | 6 years without rust |
Our temporary fencing is portable and easy to install, just one hand can erect the panel.
Our products can be delivered fast and in time
