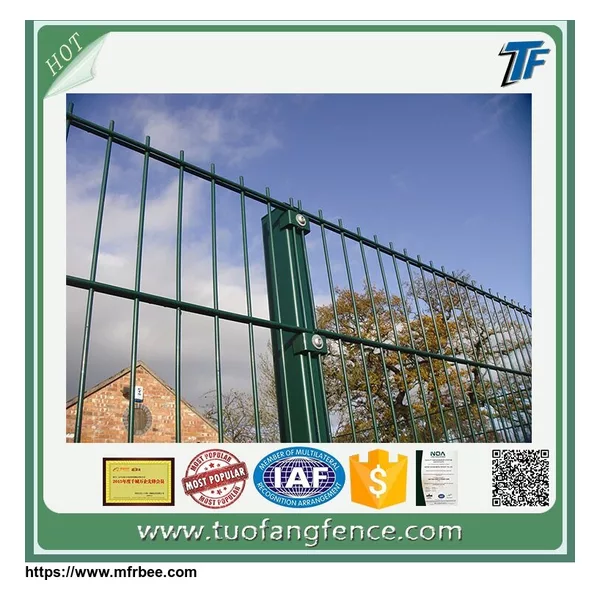

Double wire fencinguses high quality low carbon stainless steel wire as raw material. It is welded with one vertical wire and two horizontal wires.
Compared to the normal welded fence panel, the Double Welded Wire Fence can be strong enough. It obtains high strong powers to resist the construction. The Panels and posts are jointed together
with bolts or rivets, using the steel flat bar or special steel clamps, all nuts are self-locking. This also can be designed as the special clients’ requests.
Advantage:
Strong defense, Good corrosion resistance, Antiaging, Nice appearance, Easy and quick installation.
Application:
Double wire fencing has the features of grid structure, beauty and practical, landscaping. In addition, double wire fencing is easy for plants to climb and widely used in parks and living
areas.
Because of the double wire fencing features of easy transportation and installing without the limitations of special terrain. It is adjust to mountain, hillside and winding zones. Double wire
fencing as professional fence is used in airports and military bases. While adding elbow, razor wire, barbed wire and other security accessories, it can protect the enhance sites further more.
Surface: | PVC Coated / Powder Painting / Hot Dipped Galvanized |
Color : | green / black / blue / white or other colors with customers request. |
Materials: | high quality low carbon wire (Q195 / Q235) |
Wire Gauge: | 1 x Φ5mm Vertical Wire & 2 x Φ6mm Horizontal Wire |
Mesh Hole: | 50mm X 100mm / 55mm X 100mm / 50mm X 200mm / 55mm X 200mm |
Panel Width: | 2.0m / 2.5m ( customized with customers' special requirements) |
Panel Height: | 830mm / 1030mm / 1230mm / 1430mm / 1630mm / 1830mm / 2030mm / 2230mm / 2430mm ( customized with customers' special requirements) |
Panel Height | Panel Weight | Packing quantity (Panel) | Packing quantity (Post) | Post Height |
1030mm | 19.2kg | 1200 sets | 1200 sets | 1530mm |
1230mm | 20.7kg | 1023 sets | 1023 sets | 1730mm |
1430mm | 22.1kg | 910 sets | 910 sets | 1930mm |
1630mm | 23.6kg | 800 sets | 800 sets | 2130mm |
1830mm | 25.1kg | 712 sets | 712 sets | 2330mm |
2030mm | 26.5kg | 650 sets | 650 sets | 2530mm |
