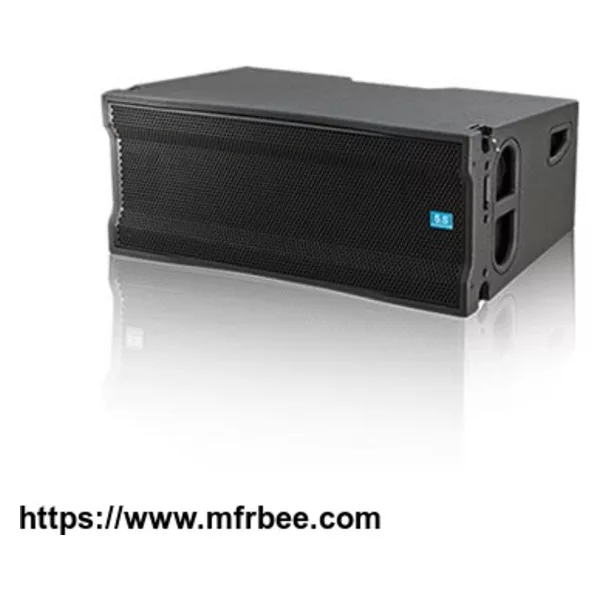

D-208 Line-Array Loudspeaker

FOB Price: USD $6,000.00 / Piece
Minimum Order: 10

Place Of Origin: Xiamen, China

Packaging: strong carton foam inside to protect

Delivery: 20 Days

Description:

D-208 of 5.S brand is a two way multifunction full rang loudspeaker system, it is embedded in two pcs of 8"(65mm) voice coil, high-power of ultra-low distortion unit, a square steel fiber horn which with a coverage of 120°*120° and Italy imported 1.5" throat,75mm voice coil, neodymium compression driver. D-208 of 5.S is suitable for stadium, auditorium, hotel conference, theater, large-scale activities etc; bring a strong solution to the audio system.

Applications：

Large stadiums, arenas, all kinds of performances

Entertainment venues, nightclubs, bars

Theme park and concert hall

Mobile or fixed installation

As subwoofer of other audio system

Specifications:

Type: LF/2*8〞+HF/1*1.5〞 horn

Frequency Response: LF/65Hz-5000Hz HF/500Hz-20000Hz

Rated Power: LF/ 200W(AES)/ PCS HF/ 70(AES)/ PCS

Sensitivity: LF/ 95dB(1W&1M) HF/ 109dB(1W&1M)

Max. System Output 136dB（Peak）

Input connectors： professional Waterproof plugin with 10 speakons

Crossover Frequency： external frequency division

Impedance： 16Ω/Box

Box connecting components： Aluminum 208

The angle of components： Aluminum 0°-8°can be adjusted

Linear array bolt components： Φ10mm*50mm

The box cover： Black oxidation of fine lines

Speaker hanging pendant： D-208 with Kit

Enclosure

Colour： Polyurea Paint /Water-based paint points (All RAL Colors)

Material： 15mm Russian Birch Plywood

Dimensions(W*H*D)： 700mm*248mm*330mm

Weight: 25.85Kg

Country: China (Mainland)
Business Type: Trading Company
Market:
Founded Year:2016
Address:5unit of 8th Floor,Building D of Xiamen International Shipping Center,No.97 xiangyu road,
Contact:Sarah
