Road Marking Machine YHHF-1000

Heating Mode
Liquefied petroleum gas
Power(W)
18HP
Heating Temperature
0-300℃
Machine Weight
1100kg
Type
YHHF-1000
Minimum Order
1
Place Of Origin
China(Mainland)
Product Name
Thermoplastic Pre-Heater
Cylinder Capacity
500kg*2
Recommended Discharge Temperature
180-220℃
Dimensions
1700*1650*1600mm
Stirring System
Hydraulic stirring system with protective device
Gasoline Tank Capacity
70L
FOB Price
USD $5,200.00 / Piece
Packaging
Plywood packing
Delivery
25 Days

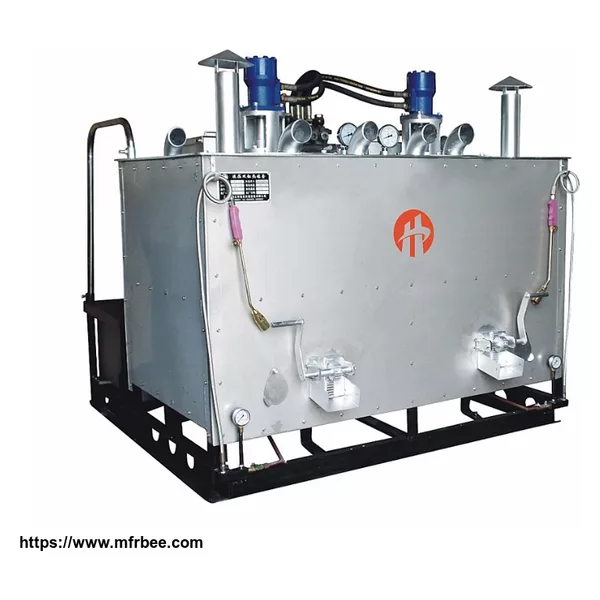

Hydraulic Double Cylinder Thermoplastic Paint Pre-Heater 1000Ⅱ

Technical Data

Model Number: YHHF-1000Ⅱ
Power(W): 18HP
Stirring system: Hydraulic stirring system with protective device
Heating Mode: Liquefied petroleum gas
Cylinder capacity:500kg*2
Gasoline tank capacity:70L
Heating temperature:0-300℃
Recommended discharge temperature:180-220℃
Machine weight:1100kg
Dimensions:1700*1650*1600mm

Application

Thermoplastic paint pre-heater, also called hot melt kettle, always matched with thermoplastic machine, is used for heating, melting, and stirring thermoplastic road marking paints continuously, preparing hot melt paints for the thermoplastic road marking machine during long distance road lines marking work.
Thermoplastic pre-heater can be used in the following areas:
Highways-for guiding and controlling traffic
City roads-for smooth flow of traffic city streets
Airports & runways
Side streets
Parking lots
Railway platform
Bus stops
Zebra crossing
Bike paths
Motorway etc

Warnnig Tips

1. The temperature is high, so wear gloves before operate the thermoplastic pre-heater to prevent getting burnt.
2. If the thermoplastic paint is wet or there is water in the kettle, please open the cover on the kettle when heated.
3. During the construction, first, put powder coating (additives) into the hot-melt kettle. The heating temperature must be controlled between 180 ℃ ~ 220 ℃.
4. Begain stirring while melting, when the paint into a homogeneous liquid state (above 100℃). Turn reversing valves in neutral first, when the paddle is completely stopped, then starting the reverse stirring.
5.And then, the hot-melt material is ready to be discharged into the thermoplastic road marking machine for marking construction.
6. Avoiding remaining too much coating after construction.
7. Regularly check the gas pipe, prevent aging.
8. The melting paint quality affects directly to the traffic lines marking quality, so the pre-heater is a key part during thermoplastic paint roadline construction, and essential device for thermoplastic paints heating and melting.
