Chain Link Fence Gate

Chain link fence gate make an important part for perimeter fencing system. It allows pedestrians and autos to go in and out of the enclosed areas or sites conveniently while remains a safe barrier. The gate is usually made of chain link mesh panels made from galvanized steel wire or PVC coated wire, then framed with tubes and fixed with rollers. The chain-link gates are very much used together with chain link fencing for houses, edifices, ranches and farms. Lang Tend supplies tie wire, post caps, gate finger, rings and other accessories for installing the gates.

Single Swing Chain link Gate

Single swing chain link gate has one leaf and is usually for man going trough. It also can be made with a larger opening, just make sure enough space for gate opening

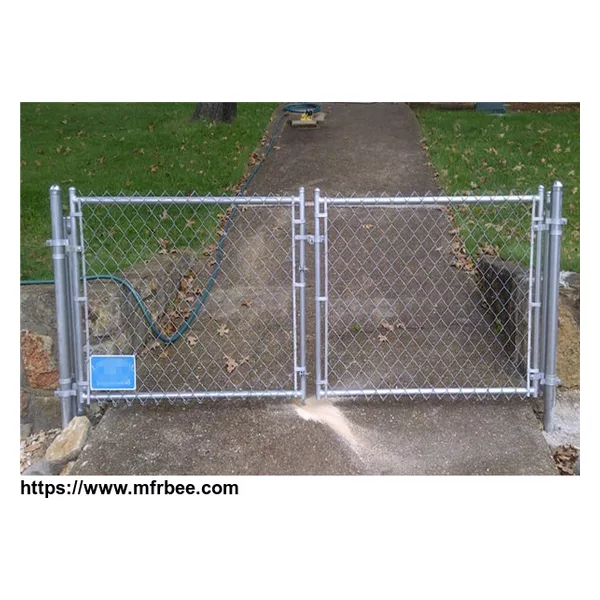

Double SwingChain Link Gate

Double Swing Gates have two leafs and a drop rod to hold them in place while the gate is shut.It is both for man and vehicle.

Specification

Height of gate panel (m)	1.0m,1.2m,1.5m,1.8m,2.0m
Width of gate panel (m)	Single leaf:1m,1.2m,1.5m Double leaf:2.0m,3.0m,4m,5m,6m,8m
Gate frame Surface	Square tubes: 35x35mm,40x40mm,50x50mm,60x60mm
Surface Treatment	Galvanized or PVC coated
Colour	green, blue, yellow, white, red etc

Accessoriesare supplied for installation: post cap, tension bar, tension band, gate finger and more.
Installation of Chain Link Fencing Gates:

Step 1:Install the line post and terminal posts by using of tension bands, brace bands and bolts.
Step 2:Attach line post caps. Join the top rail with swaged end. Plain end of the top rail fits into rail end fittings on the terminal post.
Step 3:After assembling framework as above, unroll the chain link netting fabric on the ground along the fence line starting at terminal post.
Step 4:Then slide the tension bar through the last link in the fence fabric and attach this combination to the terminal post using tension band and bolts.
Step 5:Adjustment of mesh netting. If more or less netting fabric is required to span the opening, an additional amount can be connected or removed.
Step 6:The chain link fence netting shall be on the outside face of all posts and loosely attached to the top rail by a tie wire.
