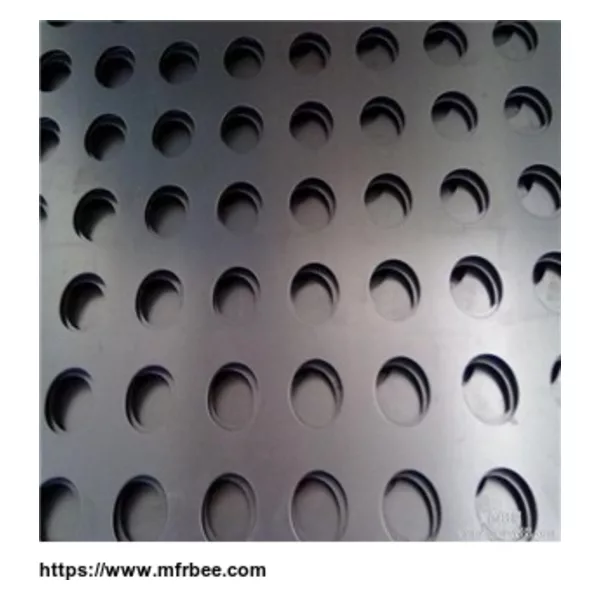

Perforated Mesh
Product sourcing details
Supplier: Hebei Tengyuan Wire Mesh Products Co.,Ltd
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Perforated Mesh Materials: Galvanized Plates,Low Carbon Steel Plate, Stainless Steel Plate, Aluminum Plate, Alloy Plate, etc.
Weaving and characteristics: It is punched to meshes. With the character of winding-resisting, Ageing-resisting, flat and smooth surface, it is strong and serviceable.
Uses:
used in filter of automobiles internal-combustion engine, sieving of mine, Medicine, grain, sound insulation of room, ventilate of grain depot, etc.
Punching shape: Square, rectangular, round, diamond, oblong, hexagon or special.
Rolled plate thickness: 0.2mm-1mm, length: 20m, aperture:3mm-10mm.
Plate thickness: 0.2mm-20mm, wide*length ≤ 1.5m*5m, aperture:0.25mm-200mm.
Punching Way:
1. Same direction of continuous cutting: Using rectangular mesh mold overlap processing, can
carry on the processing of long hole, trimming, etc;
2. Progressive forming: The molding than mesh size large processing way;
3. Nibble: Using a small circular die with small interval for continuous strike arc rocessing way;
4. Continuous cutting direction: Using a small mesh mold machining way of big hole;
5. A single forming: According to the mold shape a shallow deep drawing forming processing way;
6. Single punching: A single complete punching, including straight line, arc distribution, the circulardistribution, grid hole punching;
7. Array forming: On the big board processing more than the same or different ways of work piece machining.
Applications:
Widely used through the urban area of highway, railway, subway in the environmental noise barrier,also used in building, electron industry, chemical mechinery, mechanical equipment and so on.
Weaving and characteristics: It is punched to meshes. With the character of winding-resisting, Ageing-resisting, flat and smooth surface, it is strong and serviceable.
Uses:
used in filter of automobiles internal-combustion engine, sieving of mine, Medicine, grain, sound insulation of room, ventilate of grain depot, etc.
Punching shape: Square, rectangular, round, diamond, oblong, hexagon or special.
Rolled plate thickness: 0.2mm-1mm, length: 20m, aperture:3mm-10mm.
Plate thickness: 0.2mm-20mm, wide*length ≤ 1.5m*5m, aperture:0.25mm-200mm.
Punching Way:
1. Same direction of continuous cutting: Using rectangular mesh mold overlap processing, can
carry on the processing of long hole, trimming, etc;
2. Progressive forming: The molding than mesh size large processing way;
3. Nibble: Using a small circular die with small interval for continuous strike arc rocessing way;
4. Continuous cutting direction: Using a small mesh mold machining way of big hole;
5. A single forming: According to the mold shape a shallow deep drawing forming processing way;
6. Single punching: A single complete punching, including straight line, arc distribution, the circulardistribution, grid hole punching;
7. Array forming: On the big board processing more than the same or different ways of work piece machining.
Applications:
Widely used through the urban area of highway, railway, subway in the environmental noise barrier,also used in building, electron industry, chemical mechinery, mechanical equipment and so on.
- Company: Hebei Tengyuan Wire Mesh Products Co.,Ltd
- Country: China (Mainland)
- Business Type: Manufacturer
- Market: Africa,Americas,Asia,Emerging Markets
- Founded Year: 1996
- Address: Room2919,,Wanda Plaza,Apartment 1,South Jianhua Street#136
- Contact: GuoMark
