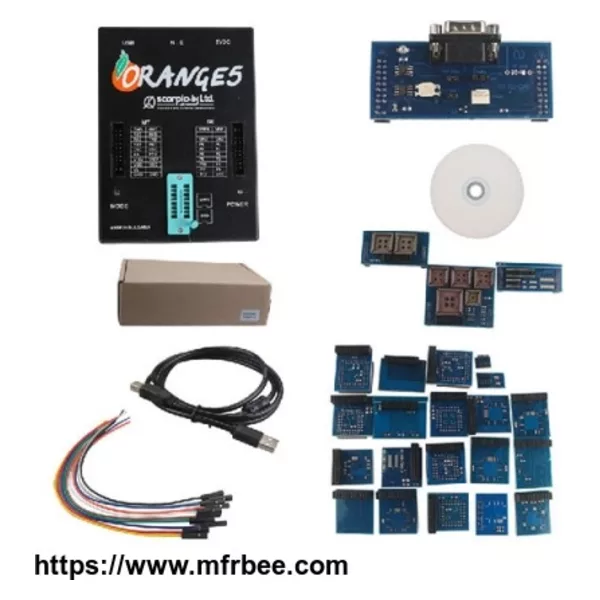

Orange5 ECU Programmer Orange 5 Professional Programming Device

Orange5 ECU Programmer version is V1.34. Orange 5 Professional Programming Device is a professional programming device for memory and microcontrollers. Orange 5 Orange5 universal programmer Supports reading and writing chips for Motorola, for Renesas, for Fujitsu, for Infineon, NEC, ST, for ATMEL and latest encryption 908.

---

Orange5 ECU Programmer Orange 5 Professional Programming Device
Orange5 Orange 5 Professional Programming Device
Software version:V1.34, software CAN NOT update.
Orange5 Programmer Support IC device list:
http://www.scorpio-lk.com/eng/orange5_chiplist_eng.html
Supports reading and writing chips for Motorola, for Renesas, for Fujitsu, for Infineon, NEC, ST, for ATMEL and latest encryption 908.
Orange 5 Programmer Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
Orange5 Technical Info:
USB power supply (USB2.0/3.0)
Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets
Two expansions compatible with Orange4 and Omega MTRK
Protection against overcurrent
Overload voltage protection
Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
