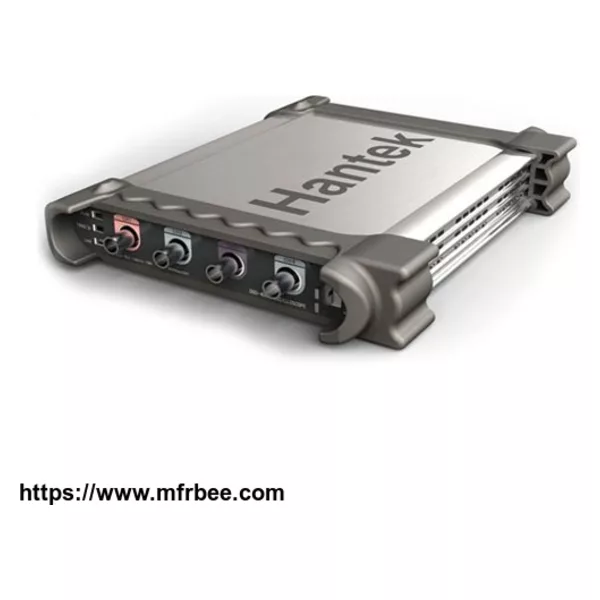

Hantek DSO3204A Automotive Oscilloscope DSO 3204A 250mhz 4 Canales
Product sourcing details
- Place Of Origin
- CN
- Minimum Order
- 1
- Packaging
- Carton
- Delivery
- 2-3 working days
Specifications
Hantek DSO3204A Automotive Oscilloscope DSO 3204A 250mhz 4 Canales
Hantek DSO3204A Feature:
256M memory depth
4 channel and EXT trigger
250MHz bandwidth
1GSa/s real-time sampling rate
8--36V Wide range of input voltage, suitable for vehicle power test
More than 20 kinds of automatic measurement function, PASS/FAIL Check function, is suitable for engineering application
Excellent industrial design, similar interface with bench oscilloscope, easy to use
Software support: Windows NT, Windows 2000, Windows XP, VISTA, Win7, Win8
Supply DEMO code(VC, VB, LABIEW) and technical support
Hardware Specifications:
| Model | DSO3204A |
| Vertical System | |
| Analog Channels | 4 |
| Bandwidth | 250MHz(-3dB) |
| Rise Time | 1.4ns |
| Input Impedance | Resistance: 1MΩ; Capacitance: 25 pF |
| Input Sensitivity | 10mV/div to 5V/div |
| Input Coupling | AC/DC/GND |
| Vertical Resolution | 8 bits |
| Memory Depth | 256M/CH |
| Maximum Input | 400V (DC+AC Peak) |
| Horizontal System | |
| Real-Time Sampling Rate | 1GSa/s |
| Time BaseRange | 5ns/div to 1000s/div(1-2-5 sequences) |
| Time Base Precision | ±50ppm |
| Trigger System | |
| Source | CH1, CH2, CH3, CH4, EXT |
| Mode | Edge,Pulse,Viedo,Alternative |
| X-Y MODE | |
| X-Axis Input | CH1 |
| Y-Axis Input | CH2 |
| Phrase Shift | Max.3 degree |
| Cursors and Measurement | |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement | Frequency,Period, Rise Time, Fall Time, PositiveWidth, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process | +,- , x,÷, FFT, Invert |
| AUTO SET | Yes |
| Voltage Range | 10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; 1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; 100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 |
| Current Range | CC65(20A),CC65(60A),CC650,CC1100 |
| FFT | Rectangular, Hanning,Hamming, Blackman Window |
| Math | Adition, subtraction, multiplication, division |
| Interface | USB 2.0 |
| Power Source | 8-36V wide range of input voltage, suitable for vehicle power test. |
| Volume | 255 x 190 x 45 (mm) |
| Weight | 1kg |
