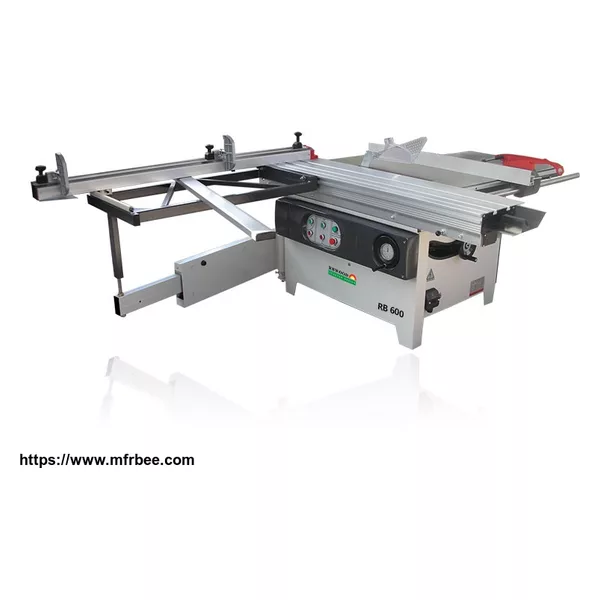

18 years experience for producing sliding table saw. 9 years for edge bander. 7 years for trading.

Features:

lSmoothly running saw blade height and angle adjustment via hand wheel

lAnalog read out of saw blade adjustment(height and tilt)

lDouble roller carriage system to guarantee absolute precision and smooth running

lLubrication-free, torsion-resistance and low maintenance

lTwo different cutting speeds as standard

lTable extensions enable convenient working conditions

lHeavy machine with massive, rugged by precise construction for max. Cutting accuracy

Specification:

Dimension of sliding table	1600mm*375mm
Width of cut	1150mm
Maximumheight of cut90°/45°	75/50mm
Table height	850mm
Tilting style and blade rise/fall	Manual/Manual
Maximum main sawblade size	305mm*30mm
Scoring saw diameter	120mm*20mm
Dust Collector inlet	100mm
Mainpower/Scoringpower	4.0Kw/0.75Kw
Voltage	380V
Speedof main saw spindle	4000/6000rpm
Speed of scoring saw blade	8000rpm
Overall dimensions	16002450900mm
N.W/G.W	400KGS/500KGS
