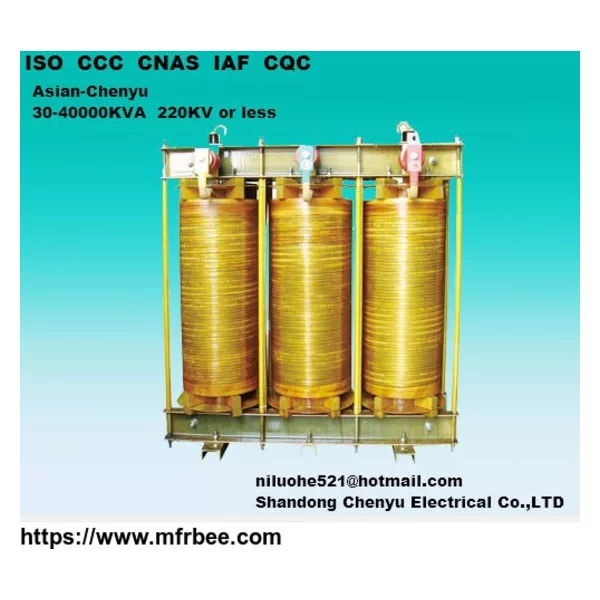

10KV series reactor
Product Quick Detail
- FOB Price
- USD $2,000.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Material
- Copper
- Packaging
- 10pcs each PVC box
- Delivery
- 30 Days
Specifications
1. Main purposes: in the power system, for reactive power compensation, and high-voltage capacitor in series, can inhibit high harmonics, limiting inrush current and operating over-voltage, improve the voltage waveform, improve power quality and save energy.
2. Structural features: the core air gap structure, glass insulated copper wire, B-class insulation.
3. Conditions of Use: Ambient temperature does not exceed 40℃, temperature limit 80℃, less than 1000 meters above sea level, indoor use.
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2001
- Address:Economic Development Zone of Qingzhou,weifang,Shandong,China
- Contact:Jianjun Dong
