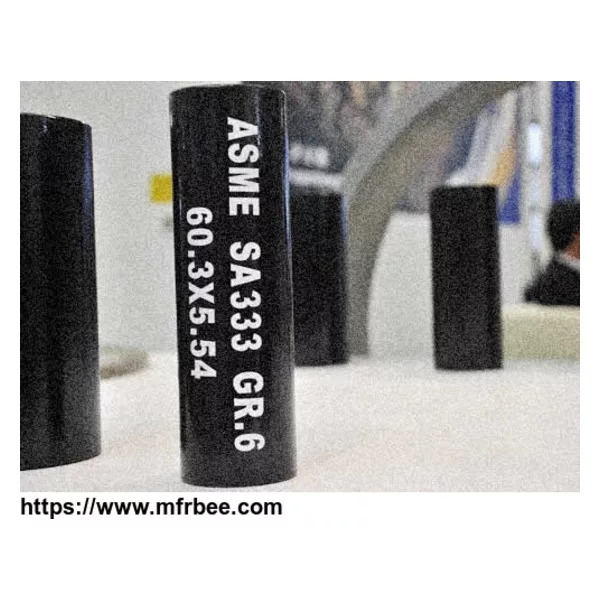

ASME SA333 Gr.6 Seamless Steel Pipe
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- in wooden boxes
- Delivery
- 15 Days
Specifications
alloy steel, ASME SA333 Gr.6, astm a333, ASTM A333 Gr.6, ASTM A333 Grade 6, gr 6, seamless steel pipe
ASTM A333 Standard covers seamless and welded steel pipe for low temperature service. The Grade 6 steel involved is similar to AISI 4032 low alloy steel. ASTM A333 Grade 6 pipe shall be made by the seamless or welding process with the addition of no filler metal in the welding operation.
Seamless and Welded Steel Pipe size for Low-Temperature Service:
- Outer Dimensions: 19.05mm-114.3mm
- Wall Thickness:2.0mm-14 mm
- Length: max 16000mm
Application: Seamless and Welded Steel Pipe for Low-Temperature Service.
Steel grade: ASTM A333 Grade 6
Inspection and Test:
- Chemical Composition Inspection, Mechanical Properties Test
- Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test
- Surface and Dimension Test,No-destructive Test, Hydrostatic Test.
ASTM A333 Gr. 6 Chemical Compositions(%)
| Elements | Composition, % |
| Carbon(max) | 0.3 |
| Silicon | ≥0.10 |
| Manganese | 0.29-1.06 |
| Phosphorus(max) | 0.025 |
| Sulfur(max) | 0.025 |
| Chromium | — |
| Nickel | |
| Copper | — |
| Molybdenum | — |
| Vanadium | — |
| Aluminum | — |
ASTM A333 Gr.6 Mechanical Properties
| Data | ASTM A333 Grade 6 |
| Tensile strength, min, psi (MPa) | 60 000 (415) |
| Yield strength, min, psi (MPa) | 35 000 (240) |
Impact temperature
Minimum Impact Test Temperature -45 C(-50 F)
