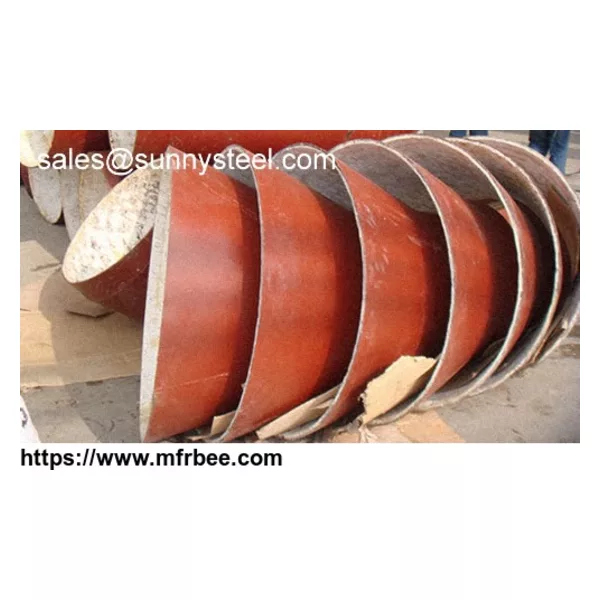

Ceramic Tile lined pipe reducer
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- in wooden boxes
- Delivery
- 15 Days
Specifications
Ceramics are among the hardest materials available and provide ultimate wear resistance in piping. In high wear applications, ceramic lined pipes have been demonstrated to be cost-effective by increasing service life and reducing maintenance costs. Sunny Steel supply ceramic lined abrasion resistant steel pipes to your custom dimensions and budget. Our ceramic linings are the highest quality materials available to ensure that we provide the most cost-effective solutions for our clients.
The Ceramic Tilescould protect Industrial Components against abrasion, impact wear and high temperature of above 1000°C. Standard Flat Tiles of Square & Rectangular Shape having thickness of 6 to 50 mm, with or without central hole are available.
- Materials:seamless mild steel pipe plus 95% alumina ceramics for liner
- Designed pressure:>=0.35Mpa
- Normal operation velocity:20-35m/s
- Normal operation temperature:-50-800
- Running medium:mixture of air and powder
- Size of the pipe:the inner diameter is between 1 to 120 or even lager
- Country: China (Mainland)
- Business Type: Manufacturer
- Market:Americas,Asia,Europe,European Union
- Founded Year:20000
- Address:No. 273, Siping Road, Shanghai
- Contact:sum xu
