ultraviolet detector,365nm, 405nm, 450nm for option
Product sourcing details
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
UVATA 2013 UV METERS
Germany quality China price! You cannot miss it!
High precision UV light meter
365nm, 405nm, 450nm for option, other wavelength customize.
UV energy meter, UV light intensity detector.
One year warranty, life-long calibration service.
Description & Data Sheet

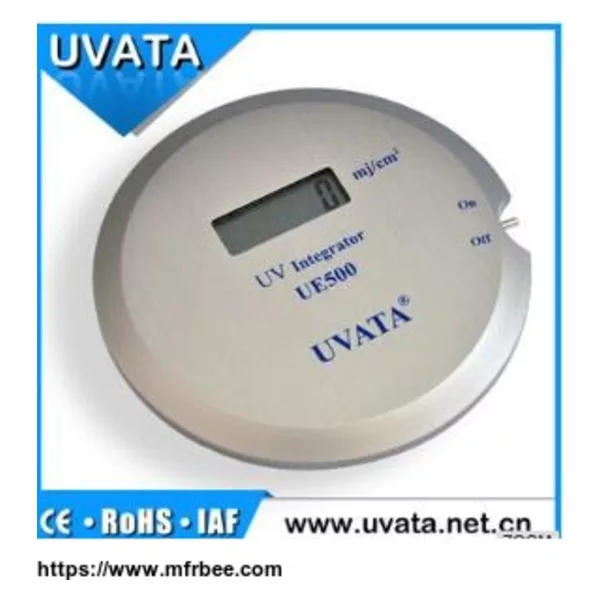

UVATA-UE500is a set UV energy meter with high quality and high precision.
Spectral range: UV 250-410nm peak wavelength 365nm
Light intensity range: 0-5,000mW/cm2
Measuring range: 0-999,999mJ/cm2
Technological Accuracy: ±5%
Power: AAA*3 could be replaced by customers
Battery life: 30000H
Overall dimension: disc type appearance with a diameter of 128mm, height 14mm.
Weight: app. 500g, aluminum alloy material.
Ambient temperature: 0-45 Celsius degree
Temperature duration: less than 10s under 110 Celsius degree.
Automatic protection: it will turn off with no sensor object in 1 hour.
Calibration period:
For all the electronic components, such as the sensor, will get aging during usage. In order to guarantee the accuracy and performance of the meter, the meter should be calibrated yearly.
(In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after the change of battery.)
Warranty period:
One year guarantee with no charge since the purchase day. (One year from the date of purchase.) Artificial damage or damage caused by inevitable element, and consumables such as photographic coating and LCD are not included.
UVATA-520is a type of excellent performance and precision UV Radiometer.
It could meter the UV power and UV energy. It could meter power, energy, temperature and the time when the peak value appears. The sensor probe is connected outside (UEH365/UEH405/UEH460 for option). Meanwhile it could detect the battery energy and display it.
UE520 (the sensor probe connected outside the controler)
This type UV illuminometer could detect the UV LED power, energy, temperature and the time when the maximum appeared.
Spectrum range: UVA
Peak wavelength: optional (UEH365/UEH405/UEH460)
Light intensity range: 0-10W/cm2
Measuring range: 0-1000J/cm2
Temperature range: 0-75°C
Accuracy: ±5%
Power: AAA*3 could be replaced by customers
Overall dimension: 75 (width)* 130 (length)*16(height)mm
Weight: app. 500g, aluminum alloy material
Notes:
Ambient temperature: 0-45 °C(Celsius degree)
Temperature duration: less than 10s under 110°C.
Automatic protection: it will turn off with no sensor object in 1 hour.
Calibration period:
For all the electronic components, such as the sensor, will get aging during usage. In order to guarantee the accuracy and performance of the meter, the meter should be calibrated yearly.
(In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after the change of battery.)
Warranty period:
One year guarantee with no charge since the purchase day. (One year from the date of purchase.)Artificial damage or damage caused by inevitable element, and consumables such as photographic coating and LCD are not included.
Application:
UV energy detecting
UV energy record
UV light intensity detecting
UV irradiation monitoring
UV attenuation detecting
Especially designed for UV LED light test
Germany quality China price! You cannot miss it!
High precision UV light meter
365nm, 405nm, 450nm for option, other wavelength customize.
UV energy meter, UV light intensity detector.
One year warranty, life-long calibration service.
Description & Data Sheet
UVATA-UE500is a set UV energy meter with high quality and high precision.
Spectral range: UV 250-410nm peak wavelength 365nm
Light intensity range: 0-5,000mW/cm2
Measuring range: 0-999,999mJ/cm2
Technological Accuracy: ±5%
Power: AAA*3 could be replaced by customers
Battery life: 30000H
Overall dimension: disc type appearance with a diameter of 128mm, height 14mm.
Weight: app. 500g, aluminum alloy material.
Ambient temperature: 0-45 Celsius degree
Temperature duration: less than 10s under 110 Celsius degree.
Automatic protection: it will turn off with no sensor object in 1 hour.
Calibration period:
For all the electronic components, such as the sensor, will get aging during usage. In order to guarantee the accuracy and performance of the meter, the meter should be calibrated yearly.
(In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after the change of battery.)
Warranty period:
One year guarantee with no charge since the purchase day. (One year from the date of purchase.) Artificial damage or damage caused by inevitable element, and consumables such as photographic coating and LCD are not included.
UVATA-520is a type of excellent performance and precision UV Radiometer.
It could meter the UV power and UV energy. It could meter power, energy, temperature and the time when the peak value appears. The sensor probe is connected outside (UEH365/UEH405/UEH460 for option). Meanwhile it could detect the battery energy and display it.
UE520 (the sensor probe connected outside the controler)
This type UV illuminometer could detect the UV LED power, energy, temperature and the time when the maximum appeared.
Spectrum range: UVA
Peak wavelength: optional (UEH365/UEH405/UEH460)
Light intensity range: 0-10W/cm2
Measuring range: 0-1000J/cm2
Temperature range: 0-75°C
Accuracy: ±5%
Power: AAA*3 could be replaced by customers
Overall dimension: 75 (width)* 130 (length)*16(height)mm
Weight: app. 500g, aluminum alloy material
Notes:
Ambient temperature: 0-45 °C(Celsius degree)
Temperature duration: less than 10s under 110°C.
Automatic protection: it will turn off with no sensor object in 1 hour.
Calibration period:
For all the electronic components, such as the sensor, will get aging during usage. In order to guarantee the accuracy and performance of the meter, the meter should be calibrated yearly.
(In order to keep its full function and precision it is recommended to have re-calibration done once per year. Re-calibration will also be necessary after the change of battery.)
Warranty period:
One year guarantee with no charge since the purchase day. (One year from the date of purchase.)Artificial damage or damage caused by inevitable element, and consumables such as photographic coating and LCD are not included.
Application:
UV energy detecting
UV energy record
UV light intensity detecting
UV irradiation monitoring
UV attenuation detecting
Especially designed for UV LED light test
