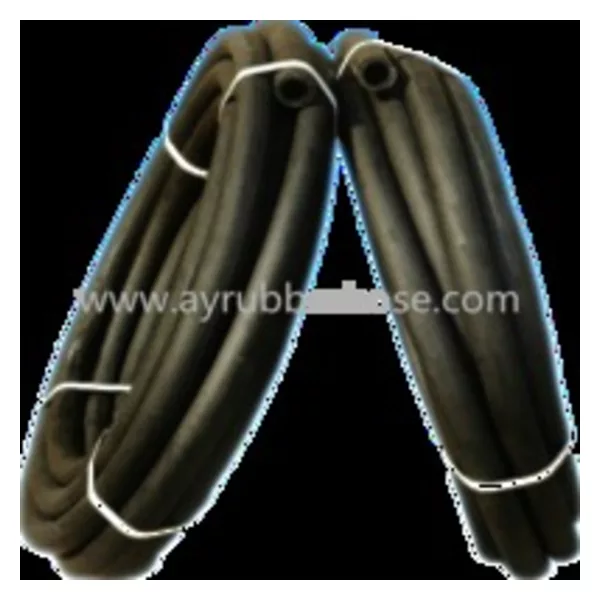

high toughness bulk cement hose for pneumatic discharge
Product Quick Detail
- Place Of Origin
- Hebei,China
- Minimum Order
- 200
- Packaging
- 100 m per plastic film
- Delivery
- 15 Days
Specifications
Material:
The main raw materials are polyurethane and crystalline silicon, the auxiliary materials are NBR, SBR, PARA rubber and special reinforcing filler.
Inner layer: black, smooth, wear-resistant
Reinforced layer: One wire braid reinforcements
Outer layer: Blue/red/black, smooth, wear-resistant
Temperature range: -20℃ to +50℃
Characteristic:
High wear-resistant, high toughness, The wear-resisting of the hose is three times or more higher than the standard hose. High abrasion resistant tube which resists cutting and gouges.
Use:
For the transfer of bulk material, abrasives, concrete and cement
For pneumatic discharge of dry powders, dry cement or other dry materials.
Date sheet:
|
Inside diameter (I.D.) |
Outside diameter (O.D.) |
Working pressure (WP) |
Burst pressure (BP ) |
Weight (W) |
Bending radius (BR) |
|||
| mm | inch | mm | bar | psi | bar | psi | kg/m | mm |
| 25 | 1 | 41±1.0 | 240 | 3480 | 720 | 10440 | 1.46 | 250 |
| 32 | 1-1/4 | 51±1.0 | 130 | 1885 | 390 | 5655 | 1.89 | 320 |
| 38 | 1-1/2 | 54±1.0 | 120 | 1740 | 360 | 5220 | 2.03 | 380 |
| 51 | 2 | 71±1.0 | 100 | 1450 | 300 | 4350 | 3.53 | 510 |
| 57 | 2-1/4 | 79±1.0 | 75 | 1087 | 225 | 3260 | 3.91 | 570 |
| 64 | 2-1/2 | 86±1.0 | 60 | 870 | 180 | 2610 | 4.33 | 640 |
| 70 | 2-7/8 | 93±1.0 | 55 | 797 | 165 | 2391 | 4.67 | 700 |
| 76 | 3 | 98±1.0 | 40 | 580 | 120 | 1740 | 5.22 | 760 |
| 89 | 3-1/2 | 111±1.0 | 25 | 362 | 75 | 1086 | 6.17 | 890 |
| 102 | 4 | 126±1.0 | 20 | 290 | 60 | 870 | 7.1 | 1020 |
