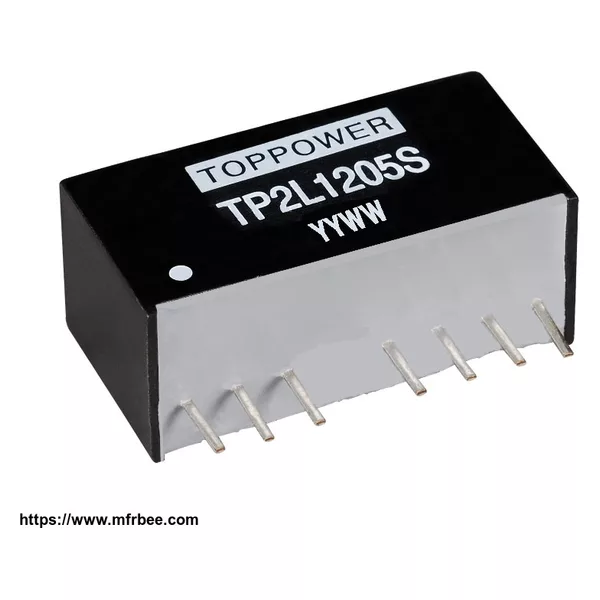

TP2L series are a range of isolated 2 Watt converters in a SIP package, 2:1 wide input range and tightly regulated output voltage qualifies these converters for many cost critical applications in industrial and consumer electronics. Operating temperature ranges from -40ºC to 85ºC, the internal SMD construction makes it possible to offer a product with high performance at low cost.
Part NumberInput voltageRated output voltage
Voltage(VDC)
Rated Range values (V)
TP2L0503S 5 (2:1) 4.5-9 3.3
TP2L0505S 5 (2:1) 4.5-9 5
TP2L0509S 5 (2:1) 4.5-9 9
TP2L0512S 5 (2:1) 4.5-9 12
TP2L0515S 5 (2:1) 4.5-9 15
TP2L1205S 12 (2:1) 9-18 5
TP2L1209S 12 (2:1) 9-18 9
TP2L1212S 12 (2:1) 9-18 12
TP2L1215S 12 (2:1) 9-18 15
TP2L2405S 24 (2:1) 18-36 5
TP2L2409S 24 (2:1) 18-36 9
TP2L2412S 24 (2:1) 18-36 12
TP2L2415S 24 (2:1) 18-36 15
TP2L4805S 48 (2:1) 36-72 5
TP2L4809S 48 (2:1) 36-72 9
TP2L4812S 48 (2:1) 36-72 12
TP2L4815S 48 (2:1) 36-72 15
