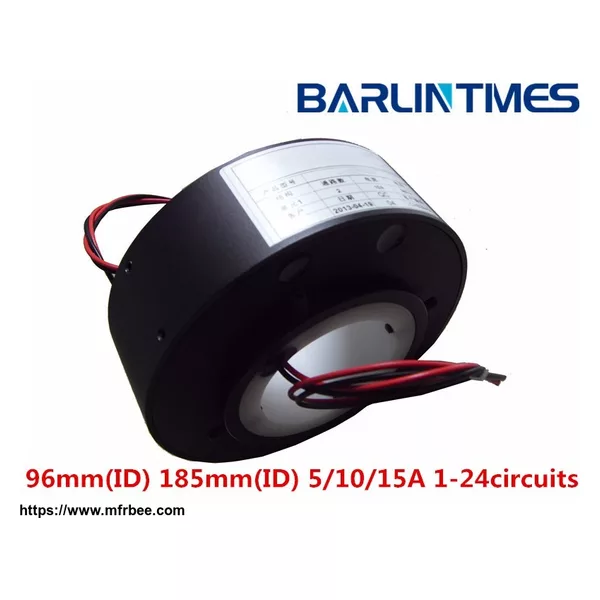

Through Hole Slip Ring with 96mm Inner Diameter

FOB Price
USD $165.50 / Piece
Place Of Origin
China
Minimum Order
1
Packaging
1 pcs each Carton
Delivery
15 Days

THR-096T

Specification
Circuits 1-24 circuits
Work Speed 0-500RPM
Work Temperature -20℃-+60℃
Work Humidity 60%RH or higher
Voltage Rating 380VAC/DC
Current Rating 5A/10A/15A
Dielectric Strength ≥1000VAC@50Hz between each circuit
Insulation Resistance 1000MΩ@500VDC
Electrical Noise 1mΩ Min
Contact Materials Precious metal
Lead Wire Size Teflon® UL
Lead Wire Length Standard 300mm
Housing Materials Aluminum alloy
Torque ≤9.25 gm ( for reference)
Protection IP54 or higher



Features:

1. Modular design & compact design

2. Transmit various analog and digital signal

3. Low wear and long work life time

4. Compatible with data bus protocols

5. 360 degree continuous rotary power transmission or data signal

  • Country: China (Mainland)
  • Business Type: Manufacturer,Other
  • Market:Europe
  • Founded Year:2010
  • Address:Rm401, Huajian Industry Building, Baogang North Rd, Luohu Dist, Shenzhen 518000, China
  • Contact:Cindy Xiong
