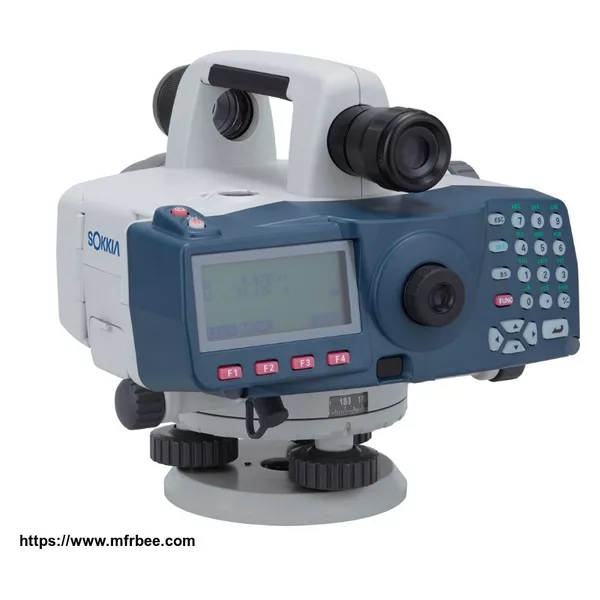

Sokkia SDL1X Advanced 32X Digital Auto Level with Bluetooth

Sokkia SDL1X Advanced Digital Level with Bluetooth 360 Deg
The SDL1X Digital Level is designed to achieve the highest precision and productivity in leveling and height measurement applications. The SDL1X sets the ultimate benchmark for the precision digital levels with innovative features never before available in the industry including 0.2mm precision, Auto Focus, View Finder for quick sighting and a remote trigger for wireless operation. When precision and measurement speed matter, SDL1X is the ideal digital level for the job.

Features:

Includes:

Specifications:

yes

Protection Class	IP54 (protected against dust and splashing water)
Weight	8.2 lbs (3.7 kg)
Warranty	1-year
Tripod Thread	5/8-11
Self-Leveling	yes
Units of Measure	Degrees, mm, m, in, ft
Dimensions	8.9 x 10.2 x 7.9 in (22.6 x 26.0 x 20.0 cm)
Height Measurement
Working Range	5.3 ft. to 328 ft. (1.6 m to 100 m)
Measuring Time	<2.5 seconds
Least Count	0.001 m, 0.01 ft.
Distance Measurement
Time	<2.5 seconds
Range	5.3 ft. to 328 ft. (1.6 m to 100 m)
Display and Keypad
Type	LCD
Keys	Alphanumeric
Backlight	yes
Telescope
Magnification	32x
Objective Aperture	1.8 in.(45 mm)
Resolving Power	3"
Field of View	1°20'
Minimum Focus	5 ft. (1.5 m)
Image	Erect
Compensator
Type	Magnetic damping and pendulum mechanism
Range	±12'
Temperature
Operating	-4°F to +122°F (-20°C to +50°C)
Battery/Power
Power Source	Rechargeable Li-Ion BDC58
Battery Life	12 hours
Battery Life Alert	yes
Features
Circular Level Sensitivity	8'/2 mm
Adjustment Knobs	2
Interface	RS-232C, USB Host Type A
Memory	10,000 measurements
Accuracy
Distance	±10 mm at 10 m
Height	0.2 mm per km double run
Functions
Single Measurements	yes
Continuous Measurements	yes
Average	yes
Elevations	yes
Height Differences	yes
Cut and Fill	yes
Distance Stakeout
