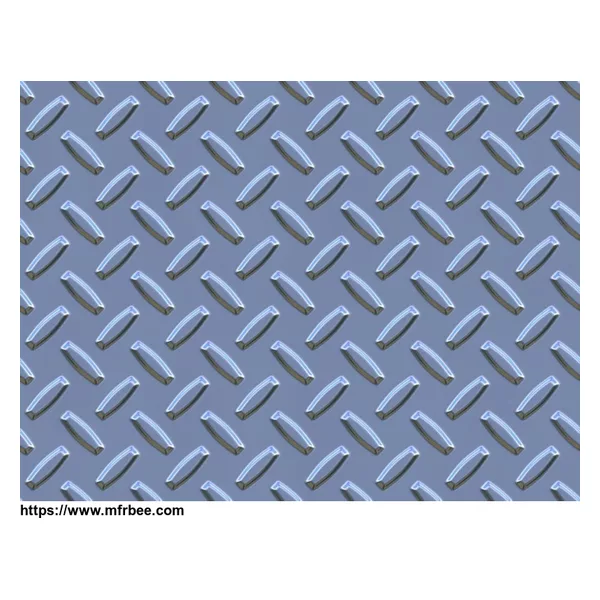

Diamond Chequered Tread Plate

Checkered diamond pattern metal sheet is the most widely used and most common anti-slippery tread

plate and stair covering material. Diamond tread plate is ideal for walkways. The raised part of

the checkered metal plates makes the walking very comfortable. It is equally applicable to many

areas, such as walkways, bracket plate, attic, stair treads and so on. It can be used in all

slight anti-slip flooring needs.

Materials for Anti-skipping tread plate: Iron, stainless steel, galvanized steel, aluminum.

Diamond Aluminum sheet 6082

Ridge Length:38mm;Ridge height:0.8-1.2mm

Thickness:0.8-6.0mm

Width:500-2300m

Choosing the Right Metal Plate Thickness for Stamping Slip-Resisting Checkered Tread Plate:

Stamping chequer process: After two CNC punching, stamping, but not perforated through. To form

raised or embossed patterns and designs on one surface of the metal plate, but on holes going

through the stamped sheets.

Thus the stamped checkered tread plate needs metal sheet material with proper thickness. If the

plate is too thin, it will get punched through easily and leave opening on the sheet. If the

metal plate is too thick, it is hard to get chequers on the surface.

The common metal sheet thickness for checkered tread plate: between 1.2-1.8mm.

Tread plates can be checkered plate, perforated metal or expanded metal sheets. Diamond

(checkered) plate is one kind of anti-slippery tread plates characterized by beautiful

appearance, good strength, light weight, metal material saving and many other advantages. Diamond

checkered tread plate has wide range of applications in transportation, construction, decoration,

flooring for equipment, machinery, shipbuilding and other fields.

In general, the user of diamond tread plate has less requirements for mechanical and engineering

performance. The quality requirement for diamond checkered tread plate concentrates on checkering

rate, height and depth levels. Currently on the market there are two plate thickness commonly

used: 1260,1000 mm. Plate width ranges from 2.0-8mm.

Major Uses Examples One:

Diamond Checkered Tread Plate for Outdoor Stair Treads:

Common mild steel tread plate will get rusty for outdoor uses. So, the diamond tread plate used

for outdoor stairs usually has a surface treatment of hot dipped galvanizing.

Skip-Resisting Tread Plate for Vehicles Safety:

Diamond tread plate can be used in the sand, mud or snow conditions for cars and other vehicles

safety moving. It can be put under the wheels as metal pad to get the cars out of blocked or

difficult conditions. This kind of rescue is safe and can save cost.
