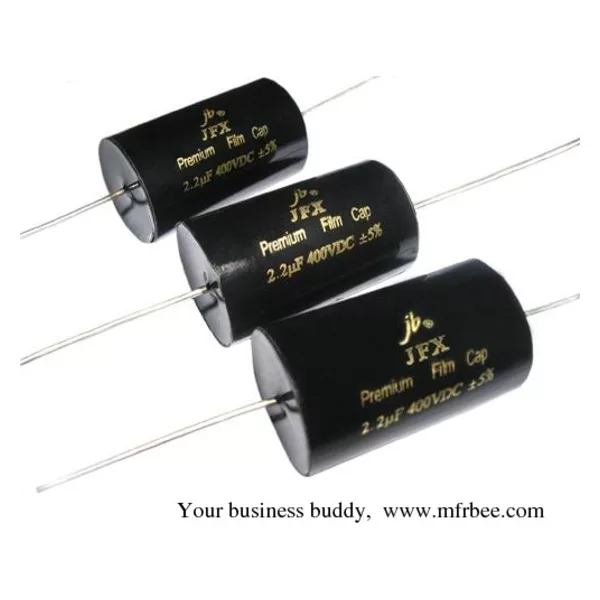

JFX - Premium Metallized Polypropylene Film Capacitors – Axial
Product Quick Detail
- China
- HK
- Packaging
- Bulk RoHS
- Delivery
- 15 Days
Specifications
- Quick transient design
- High Precise Capacitance ±3%, ±5%
- Very Low Dielectric absorption factor
- Very Low Dissipation factor
- Very Low ESR
- Very Low Inductance
- Excellent handling of high current audio pulses
| Passive flammability | GB10191-88 IEC384-16 |  |
|---|---|---|
| Operating temperature | -55℃～+85℃ | |
| Capacitance range | 0.047~100uF | |
| Capacitance tolerance | ±3%(I)、±5%(J) 1KHz | |
| Rated voltage | 250V、400V、630V.DC | |
| Withstand voltage | 1.5VR 5S | |
| Dissipation factor | ≤0.0020 1KHz | |
| Insulate the electric resistance | ＞0.33uF ≥15000MΩ ≤0.33uF ≥5000 S | |
| Leads Diameter | 0.6、0.8、1.0、1.2 Tinned Pure Copper |
