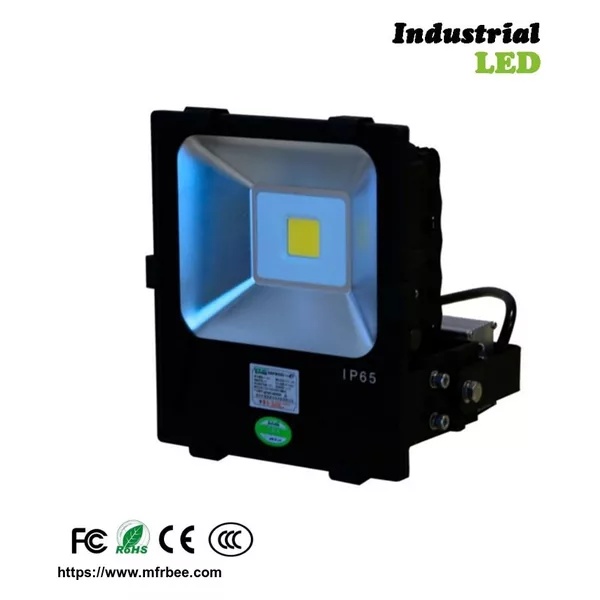

Major Parameter:
Rated Voltage:AC 220V
Rated Power:LED 50W
Luminous flux:50W 5000lm
Casing material: high strength aluminum alloy
Transparent part material: Special steel glass
Waterproof level:IP65
Corrosion proof level:WF2
Weight:2.8Kg
Dimension;281.6*207.3*118.32mm
Mounting method: wall mounting, ceiling mounting and seat mounting
Product Features:
1, High efficiency and low energy consumption: imported LED chip for light source, light efficiency can reach 100-130lm/w, saving more than 60% energy in comparison to metal halide lamps.
2, One single casting aluminum case, hi-po electrostatic powder plastic spraying surface, corrosion and rust resistent
3, High purity aluminum reflection cup proceed by chemical brightening and anodize, color never change,high reflection efficiency.
4, 4mm special anti-dazzle steel glass, heat & impact resistant
5, Radiator consists of 22 pieces of 1070 aluminum radiating sheet, the heat transmitting index of 1070 aluminum is 226W/mk.
6, Even and comfortable light, no overlapping shadow; Good color rendering, color temperature close to the sunlight
7, Environment friendly, no lead and mercury, no infrared and ultraviolet ray radiation
8, Power with constant current and constant voltage control; can endure the undulation from the grid, no noise and no stroboflash.
9, Exterior fastener uses stainless steel, dainty and endurable.
10,Built-in power supply.
Product heat dissipation advantage:
1. High thermal conductivity 6063 aluminum radiating sheet: 201W/mK,it is 2.3 times higher than traditional ADC12 die-casting aluminium: 96W/mK.
2. Chip substrate using red copper,thermal conductivity: 401W/mk,capacity of heat transmission increased double times compared with aluminum .
3. Thermally Conductive Silicone use DOW CORNING,thermal conductivity: 3.3,gray color,it makes the chip heat passed through thermal conductive silicone rapidly to the radiator fins. General lamps and lanterns manufacturers choose white thermal conductive silicone, heat conduction coefficient is 0.8~1.2
4. Lighting up half an hour,negative spot weld temperature less than 65℃;fins in back temperature different in5℃;chip temperature different with chip back also in 5℃.
5. The heat sink thickening processing, greatly increases the heat dissipation area, heat faster and more efficient.
6. Uniform light color
