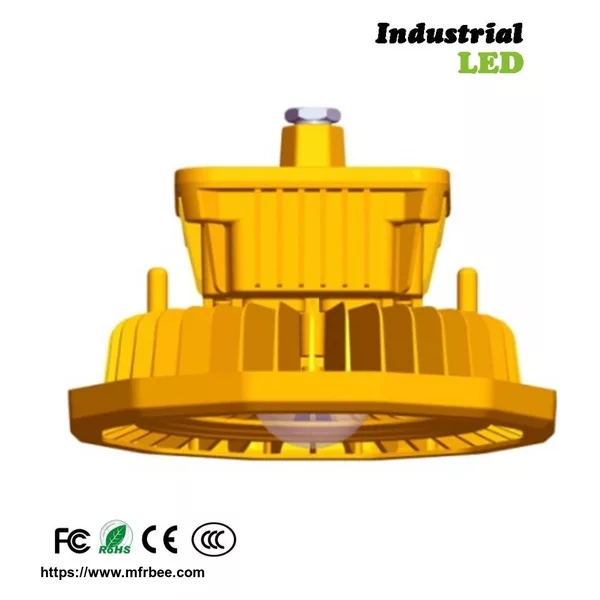

BGL-03C maintenance-free 100w explosion-proof lamp

Product features:

1,Imported LED integrated module for light source, low energy consumption and high light efficiency, saving more than 60% energy in comparison to halogen lamp under the same luminance.

2,Patented heat radiation design with excellent heat radiation effect, which can ensure the light source to work for more than 50000 hours, truly realizing the maintenance-free

3,Diecasted hard aluminum alloy casing with pressure-casted formation, surfacing high voltage electrostatic powder coated, rust resistant and corrosion resistant.

4,Highest explosion-proof level, IP66, the whole lamp has the supreme explosion-proof protection performance.

5,Lens uses the high strength toughed glass, impact, collision and corrosion resistant, strongly resistant to rapid heat change, high transmittance.

6,Advance lens light distribution design, two types of light distribution for choices: circular & rectangular. Wide light coverage and even light luminance.

7,Three independent cavities for light source, power, wiring terminals to ensure the system’s stability; wiring cavity to be humanization designed to facilitate users’ wiring operations.

8,Advanced power driving design, precise constant current control, wide range of input voltage and high power factor, resistant to grid interference.

Main parameters:

1,Light source power:80W/100W/120W/150W

2,Wide voltage design: rated 220V, workable among AC85V ~ AC265V

3,Driver’s efficiency can reach 95%, tolerance of constant current can be controlled under 5%, light works more stably.

4,LED chip temperature is less than 85 Celsius degrees.

5,LED lifetime may be 500,000+ hours

6,Mounting method:Suspension mounting, ceiling mounting, wall mounting

7,Illumination flux:80W,8000lm;100W,10000lm;120W,12000lm;150W,15000lm

8,Explosion-proof mark:Ex dII BT4 Gb /DIP

9,Weight:6.3Kg
