Glucose powder filling machine

Place Of Origin
china
Packaging
Wooden case
Delivery
15 Days

Glucose powder filling machine (hot selling)

--fj2014t222

We are a professional Filling Machine manufacturer and supplier in China. Here you can find high-quality products in a competitive price. Also we supply OEM service of products for you.

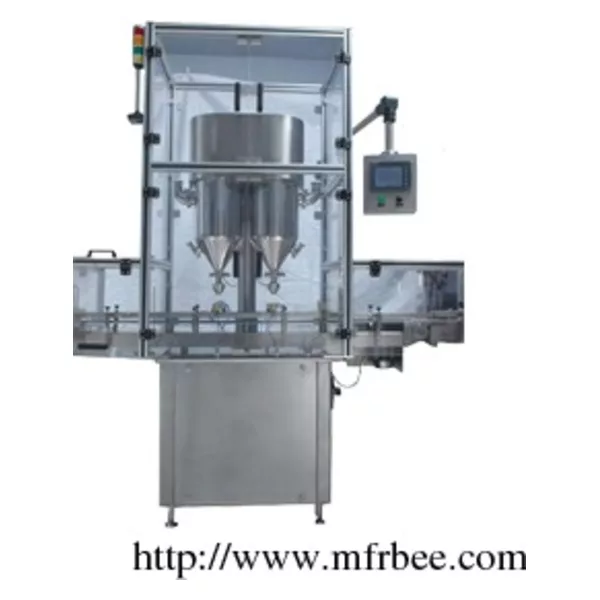

Description:
Automatic Auger type Powder filling machine is precision built on sturdy welded MS frame completely enclosed in stainless steel sheet and doors are provided to facilitate the servicing of machine. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body.
Operation:
The dried, sterilized and siliconised bottles are fed through the infeed Turn Table on the infeed SS/Delrin conveyor belt at the required speed for feeding. There are two Filling Heads and hence bottle reaches under the first filling head, it is held by the pneumatic bottle holder. Immediately it is be sensed by the bottle sensor and gives signals to magnetic clutch to start to rotate which is mounted on auger shaft. It will fill the desired amount of powder to the bottle through auger, where rotation time is set in the Timer. After filling of first bottle pneumatic bottle holder releases the first bottle to move on conveyor. At the same time second bottle also moves along with the first bottle in empty condition. In the second filling head same operation is performed but this second bottle gets filled and first bottle moves further for next operation.
Technical Specification:
Model PAPF-80
Output/Hour* 2000-4000 containers
Number of head 1 No.
Fill Size*** 5 Gms to 500 Gms (with the help of change parts)
Electrical Specifications** Main Machine 1.50 HP / 415Volts / 50 Hz.
Conveyor 0.25 HP / 415 Volts / 50 Hz.
Machine Dimensions** 2000 mm (L) x 1100 mm (W) x 1700 mm (H)
Case Dimensions 2200 mm (L) x 1300 mm (W) x 1900 mm (H)
Net Weight 500 Kgs.
Gross Weight 750 Kgs.

Main technical parameters:
1. This unit is suitable for packaging products range: 150g ~ 1000g bagged products;
2. Packaging Materials: Hard plastic bags, the size varies by product;
3. Packing speed: 6 to 10 large bags of bags / minute, pouch: 60 ~ 180 packs / min;
4. Arranged in the form of two-position cutting, horizontal single column;
5. Compressed air: 0.6 ~ 0.8MPa, gas 0.8 m3/min;
6. Power: 6Kw 380V, 50Hz.

If you want to learn more related products please pay attention to the following website: Curry powder filling machine

You can also through the following a variety of ways to contact us, waiting for your visit.

------------------------------------------------

Jinan Dongtai Machinery Manufacturing Co., Ltd.

Department: International Trade Department Post Code/ZIP: 250107 Contact Person: karen Gong(sales manager) Tel: 0086-0531-66953511 Fax: 0086-0531-88902662 Mobile Phone : 86-15866784676 MSN: dongtaipack@hotmail.com Email: may@dongtaipack.com skype: MayLv1309 Address: No.3843, Jichang Road, Lingang Development Zone, Jinan China

You can search on Google,www.dongtaipack.com for more information.
