Specifications | |||

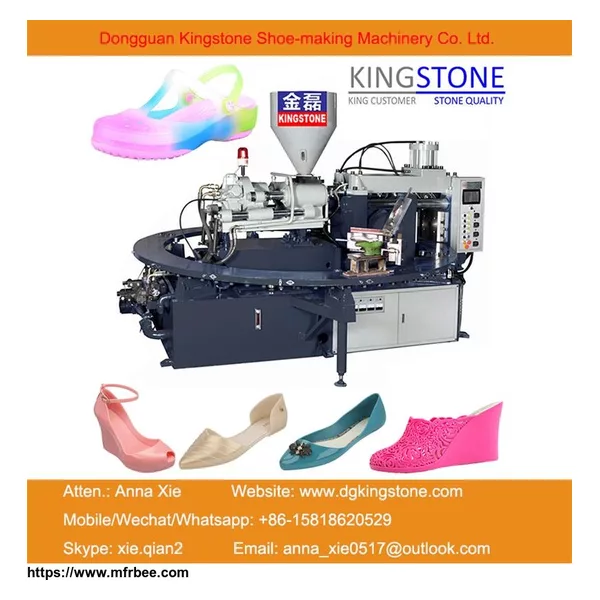

Machine model | JL-128-20S | JL-128L-20S | |
Mould-clamping Unit | |||
Work station | 20 | 20 | |
Clamping force | TON | 120-150 | 120-150 |
Opening stroke | MM | 210 | 210 |
Mould dimension | MM | 600*280 | 600*280 |
Height of injection nozzle | MM | 280 | 280 |
Injection Unit | |||
Injector | SET | 1 | 1 |
Screw diameter | MM | 60 | 60 |
Screw L/D ratio | L/D | 20 | 20 |
Max.injection volume | cm3 | 600 | 600 |
Injection speed | Cm/s | 500 | 500 |
Screw rotation speed | R.P.M | 10 | 10 |
Electricity Consumption | |||
Heating power of injector | KW | 7 | 7 |
Hydraulic unit motor | KW | 18.5 | 18.5 |
Total electric consumption | KW | 25.5 | 25.5 |
Temperature control | Section | 4 | 4 |
Dimension and Weight | |||
Machine dimension | (L*W*H)MM | 4600*3700*2500 | 4600*3700*2500 |
Machine weight | KGS | 6500 | 6500 |
*Note:Above data only for reference. |
