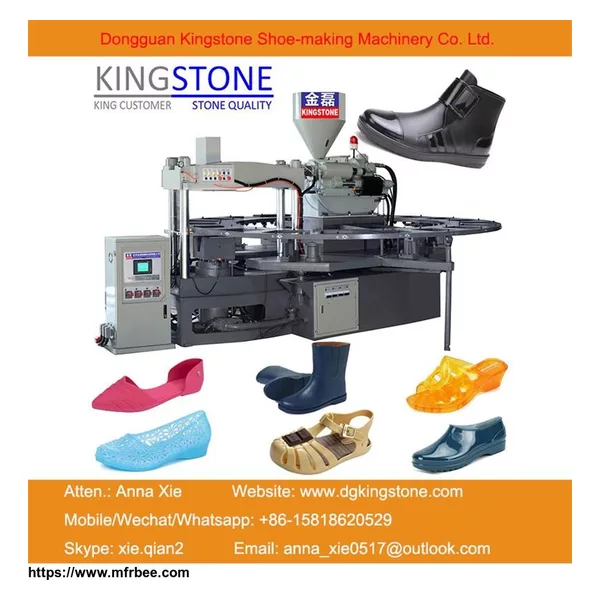

Kingstone Rotary Jelly Shoes Injection Moulding Machine

Special Feature:

1.Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.

2.Products: Specialized in producing two color shoes, slippers, sandals and boots.

It is particularly effective to the making of all-plastic shoes, and short height boots etc.

3.The oil pressure circuit design ready for mold close will shorten the cycle time and upgrade productivity.

4. Pressure switch assures the locking strength by mold lock system for far better product.

5.The turn table may run reversibly in case of emergency to eliminate the abnormality and upkeep the safety operation.

6. Furnished with mold air-blowing device, the finished products may be de-molded easily.

7.The reversible turntable in case of emergency will eliminate abnormality and upkeep safety operations.

8. Computerization in analysis and design, the machine is well in stability.

9. Conformed to human engineering in design, it features operational compatibility.

10. It could be equipped with air blowing system and can produce light weight, particularly the need for reinforced cooling effect.

Specifications
Machine model	JL-106-20S	JL-106-2C-20S
Mould-clamping Unit
Work station		20	20
Clamping force	TON	120	120
Opening stroke	MM	210	350
Mould dimension	MM	600*280	650*260
Height of injection nozzle	MM	280	650
Injection Unit
Injector	SET	1	2
Screw diameter	MM	70	70,60
Screw L/D ratio	L/D	20	19
Max.injection volume	cm3	900	900,600
Injection speed	Cm/s	500	520
Screw rotation speed	R.P.M	10	10
Electricity Consumption
Heating power of injector	KW	7	14
Hydraulic unit motor	KW	22.5	22.5,18.75
Total electric consumption	KW	29.5	55.25
Temperature control	Section	4	4*2
Dimension and Weight
Machine dimension	(LWH)MM	450035003200	720056003200
Machine weight	KGS	7500	13500
*Note:Above data only for reference.
