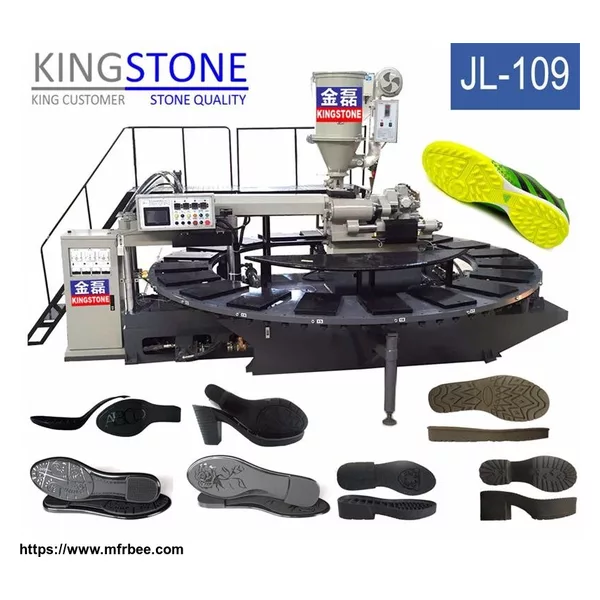

Kingstone Rotary TPU/TR Sole Injection Moulding Machine

Special Feature:

Product: Specialized in producing various kinds of one color and two color outsoles for sport shoes, leisure shoes, slippers, sandals, man’s and lady’s shoes in general, etc.

Material: Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as TPU and TR.

1. Computerization in analysis and design, the machine is well in stability and easy for maintenance.

2. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity. Conformed to human engineering in design, it features easy and friendly operation.

3. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.

4. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is clearly indicated.

6. The emergent safety button is to safeguard the operational safety.

7.The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

8. As the feeding is controlled by back pressure, it is capable of adjusting foaming density of raw material.

Specifications
Machine model	JL-109-20S	JL-109-2C-20S
Mould-clamping Unit
Work station		20	20
Clamping force	TON	120	120
Opening stroke	MM	210	210
Mould dimension	MM	420*280	420*280
Height of injection nozzle	MM	280	280
Injection Unit
Injector	SET	1	2
Screw diameter	MM	60	60,55
Screw L/D ratio	L/D	20	20
Max.injection volume	cm3	700	700,600
Injection speed	Cm/s	500	500
Screw rotation speed	R.P.M	10	10
Electricity Consumption
Heating power of injector	KW	7	7*2
Hydraulic unit motor	KW	22.5	22.5*2
Total electric consumption	KW	29.5	59
Temperature control	Section	4	4*2
Dimension and Weight
Machine dimension	(LWH)MM	5100 x3500 x2300	750035002300
Machine weight	KGS	6100	12800
*Note:Above data only for reference.
