Mini ROV

Type

LBF-150B Standard

Control Unit

ControlUnit

Pelican, L×W×H：502mm×400mm×171mm

Screen

15.6-inch LCD

IPC

i5 Processor, 4G of RAM, 64G Hard disk

Power

Battery powered or 220V AC，4-hour power supply

Buttons

3 stainless steel buttons with lights

Hand Controller

2.4G wireless connections, 10m effective distance, used for controlling the movement of the machine

Status Display

Displaying the battery status, date, time, temperature, depth, humidity and the status of the mini-ROV in real time

Video

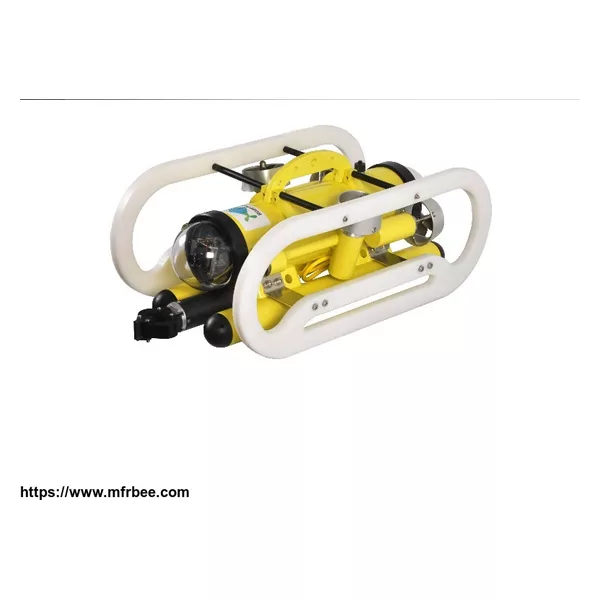

Mini-ROV

Dimension

L×W×H：450mm×290mm×220mm

Vessel Material

Intensified PVC-U and T6061 anodic aluminum oxide(AAO)

protection Frame

High strength compressed polypropylene

Camera

1 front camera: 3 megapixel, 2.8mm focal length, low illumination level;

1 rear camera: 3 megapixel, 2.8mm focal length, low illumination level

Thruster

General thruster, speed: 3 knots

Pan-and-tilt

Front camera pan and tilt：Horizontal 150°; vertical 150°

Lights

2  LED lamps, 2×500 lumen, with dimming function

temperature and Humidity Sensor

high accuracy sensor, monitoring in real time, can be applied to the  deep sea

Leakage Detection

Build-in 8 leakage detection sensors

Depth Transducer

Honeywell pressure  sensor, error ±2%

Electronic Compass

Build-in 9-axis compass, for heading and posture control in

Autonomous Functions

Auto depth, auto heading, auto rising and auto diving

Battery

Lithium Battery or 220V AC, 4-hour power supply

Umbilical

Winch

Equipped

Cable

100m

Diameter

7mm

Strength of Extension

100kg, with inner Kevlar fiber to reinforce

Others

Warranty

1 year

Optional Configuration

Mechanical arm
